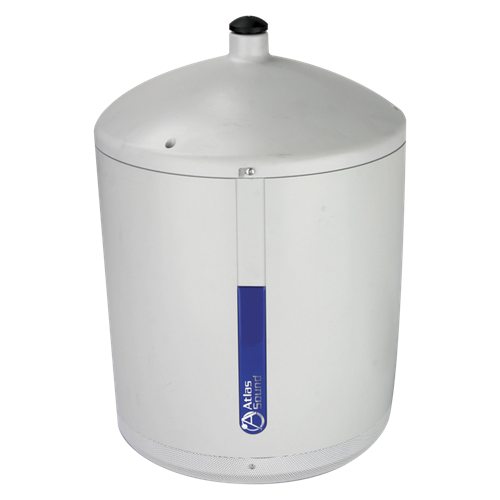

8 inch 2-way High Efficiency Pendant Mount Speaker

PM8GD-W
  • UL Listed
  • CE
  • 4OHM8OHMCAPABLE
  • 70V100VCAPABLE
    DESCRIPTION

    Model PM8GD-W uses the popular AtlasIED GD series coaxial driver to provide familiar response and high efficiency while retaining economy when high density speaker counts are required in page only applications.


    FEATURES
    • 70.7V Taps @ 1, 2, 4, 8 Watts and 8Ω Direct Input via Concealed Terminal Block
    • 8" GD87 Driver Provides 120 Degree (60 Degree Off-Axis) Coverage in the 2kHz Octave Band
    • 3 Meters of 2mm Cable & Mounting Hardware Included
    • Compatible with Standard 3/4" Ceiling Fan Hardware
    • Extreme High Efficiency (96dB 1W/1m) Allows for Lower Tap Settings and More Loudspeakers per Amp Channel in Many Installations

    SPECIFICATIONS
    Height 16 5/8" (42.2148 cm)
    Sensitivity 96dB Average
    Diameter 12 1/4" (31.115 cm)
    Shipping Weight 14.00 lbs (6.35 kgs)
    Speaker Type Coaxial (Treated Paper)

    SUPPORT FILES
    CAD Drawing
    PM8GD
