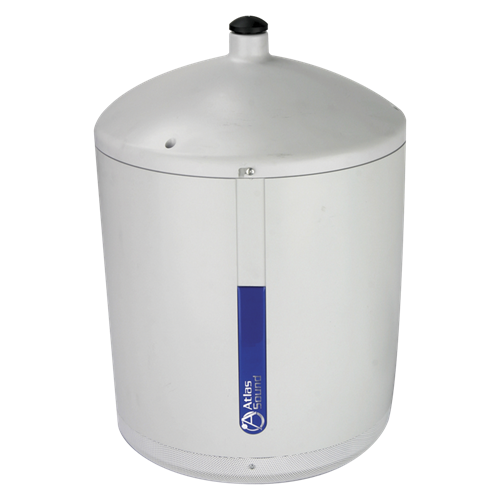

8 inch 2-way Performance Pendent Mount Speaker

PM8FA-W

  • UL Listed
  • CE
  • 4OHM8OHMCAPABLE
  • 70V100VCAPABLE
    DESCRIPTION

    For upscale performance in retail and hospitality applications, the PM8FA-W system employs the popular FA138 speaker in a specifically tuned and ported enclosure to provide impressive music and page reproduction.

    Features
    • 70.7V Taps @ 1.9, 3.8, 7.5, 15, 30 & 60 Watts Plus 8-ohm Direct Input via Concealed Terminal Block
    • 8" FA138 Driver Provides 100 Degree (50 Degree Off-Axis) Coverage in the 2kHz Octave Band
    • 3 Meters of 2mm Cable & Mounting Hardware Included
    • Compatible with Standard 3/4" Ceiling Fan Hardware

    • Outstanding Full Range Frequency Response of 65Hz - 20kHz

    SPECIFICATIONS
    Height 16 5/8" (42.2148 cm)
    Sensitivity 90dB Average
    Diameter 12 1/4" (31.115 cm)
    Shipping Weight 16.50 lbs (7.48 kgs)
    Speaker Type Coaxial
    Warranty Period 12 months from date of purchase
