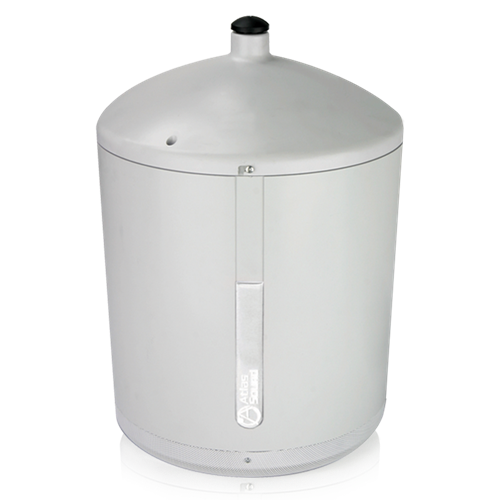

8" 2-way High Output Pendent Speaker with 60-Watt 70V Transformer - White

Availability: In stock
MSRP (USD): $500.99
  • IPX3
  • 70V100VCAPABLE

    Model PM8CX-WH includes the AtlasIED 8CXT60 compression driver coaxial speaker which provides excellent efficiency exceeding 92dB 1W/1m. The 8CXT60 also offers a desirable tighter 90 degree conical coverage pattern in the 2kHz octave band for great coverage performance in ultra high mounting locations up to 30'.

    • 70.7V Taps @ 7.5, 15, 30 & 60 Watts Plus 8-ohm
      Direct Input via Concealed Terminal Block
    • 8" 8CXT60 Driver Provides 90 Degree (45 Degree Off-Axis) Coverage in the 2kHz Octave Band
    • 3 Meters of 2mm Cable & Mounting Hardware Included
    • Compatible with Standard 3/4" Ceiling Fan Hardware
    • The Best Solution for High Ceiling Applications

    Speaker Type Compression Coaxial
    Sensitivity 92dB Average
    Frequency Response 55Hz - 15kHz
    Impedance 7.5, 15, 30, 60 Watts & 8Ω
    8Ω RMS Power 150 Watts
    Dispersion 90°
    Height 16 5/8" (42.2148 cm)
    Diameter 12 1/4" (31.115 cm)
    Shipping Weight 21.00 lbs (9.53 kgs)

    ATS002844_PM8CX_Data (3 pages)
    ATS002844_PM8CX_Data (3 pages)
    Installation Sheet
    ATS004369_PM_Series_Install_Sheet (7 pages)
    Data Sheet

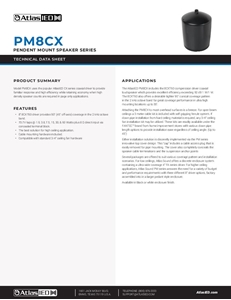

    PM8CX Datasheet (3 pages)
    CAD Drawing
    PM8 Series CAD File
    EASE File
    Revit Drawing
    PM8 Series Revit Family
    Revit Drawing
    PM8CX-WH Revit Drawing
    Common Loud Speaker Format
    Speaker Placement Tool

    The AtlasIED Speaker Placement Tool is designed to make it easy to select the proper positioning of speakers in a given room. Choose your AtlasIED speaker and the transformer taps that you plan on using. Then input the room length, width, and ceiling height. Don’t forget to choose feet or meters as your unit of measure and the listener level. The results will tell you how many total speakers are required and how they need to be positioned to maximize the sound coverage in the space.

    Transformer Tap Selection (in Watts):
    Unit of Measure:
    Room Length:
    Room Width:
    Ceiling Height:
    Listener Level:
    Average distance from ceiling to ear level:

    # of Rows:
    Number of Columns:
    Total Loudspeakers Required:
    Loudspeaker Spacing:
    First Loudspeaker "x" Placement:
    First Loudspeaker "y" Placement:
    Selected Tap Max SPL in Direct Field:
    Variance to Edge of Coverage:
    Amplifier Power Required for Selected Tap:
    Max Tap SPL in Direct Field:
    Amplifier Power Required for Max Tap:
