8 inch 2-way High Performance Pendent Mount Speaker NOTE: Replaced with PM8CX-WH

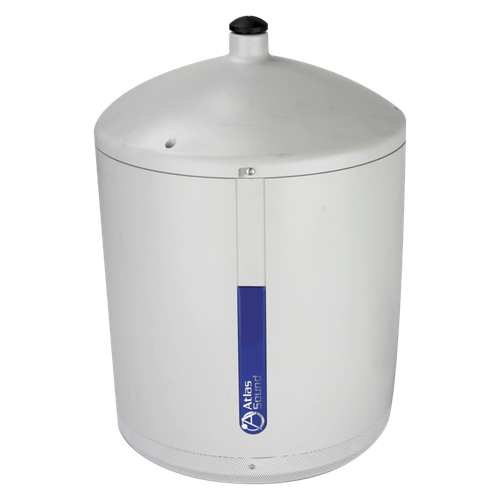

PM8CX-W

  • UL Listed
  • CE
  • 4OHM8OHMCAPABLE
  • 70V100VCAPABLE
    DESCRIPTION

    Model PM8CX-W includes the AtlasIED 8CXT60 compression driver coaxial speaker which provides excellent efficiency exceeding 92dB 1W/1M. The 8CXT60 also offers a desirable tighter 90 degree conical coverage pattern in the 2kHz octave band for great coverage performance in ultra high mounting locations up to 30'

    Features
    • 70.7V Taps @ 7.5, 15, 30 & 60 Watts Plus 8-ohm
      Direct Input via Concealed Terminal Block
    • 8" 8CXT60 Driver Provides 90 Degree (45 Degree Off-Axis) Coverage in the 2kHz Octave Band
    • 3 Meters of 2mm Cable & Mounting Hardware Included
    • Compatible with Standard 3/4" Ceiling Fan Hardware
    • The Best Solution for High Ceiling Applications
    SPECIFICATIONS
    Height 16 5/8" (42.2148 cm)
    Sensitivity 92dB Average
    Diameter 12 1/4" (31.115 cm)
    Shipping Weight 21.00 lbs (9.53 kgs)
    Power Taps 7.5, 15, 30, 60W & 8 ohms
    Speaker Type Coaxial
    Dispersion 90°
    Power Rating 150 Watts
