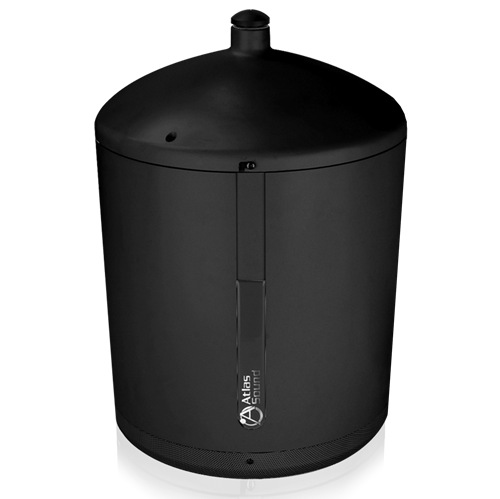

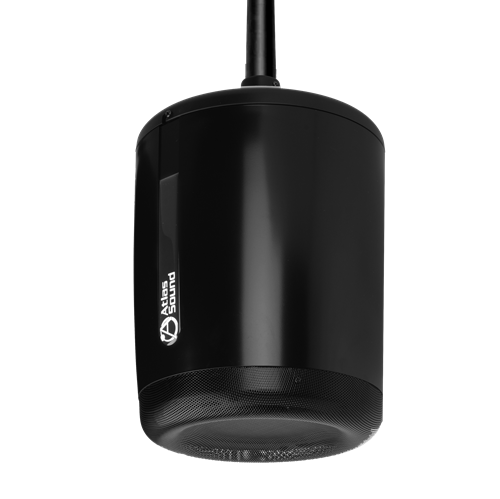

8" 2-way High Output Pendent Loudspeaker with 60-Watt 70V Transformer - Black

PM8CX-B
  • IPX3
  • 4OHM8OHMCAPABLE
  • 70V100VCAPABLE

    Model PM8CX-B includes the AtlasIED 8CXT60 compression driver coaxial loudspeaker which provides excellent efficiency exceeding 92dB 1W/1m. The 8CXT60 also offers a desirable tighter 90 degree conical coverage pattern in the 2kHz octave band for great coverage performance in ultra high mounting locations up to 30'.

    Features
    70.7V Taps @ 7.5, 15, 30 & 60 Watts Plus 8-ohm
    Direct Input via Concealed Terminal Block
    8" 8CXT60 Driver Provides 90 Degree (45 Degree Off-Axis) Coverage in the 2kHz Octave Band
    3 Meters of 2mm Cable & Mounting Hardware Included
    Compatible with Standard 3/4" Ceiling Fan Hardware
    The Best Solution for High Ceiling Applications
    Tech Specs
    Speaker Type Coaxial
    Sensitivity 92dB Average
    Frequency Response 55Hz - 15kHz
    Impedance 7.5, 15, 30, 60W & 8Ω
    8Ω RMS Power 150 Watts
    Dispersion 90°
    Support Files

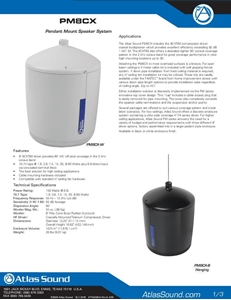

    Data Sheet PM8CX Data Sheet (3 pages) View | Download
    Installation Sheet ATS004369_PM_Series_Install_Sheet (7 pages) View | Download
    Revit Drawing PM8 Series Revit Family Download
    Revit Drawing PM8CX-B Revit Drawing Download
    CAD Drawing PM8 Series CAD File Download
    Loudspeaker Placement Tool

    The AtlasIED Loudspeaker Placement Tool is designed to make it easy to select the proper positioning of loudspeakers in a given room. Choose your AtlasIED loudspeaker and the transformer taps that you plan on using. Then input the room length, width, and ceiling height. Don’t forget to choose feet or meters as your unit of measure and the listener level. The results will tell you how many total speakers are required and how they need to be positioned to maximize the sound coverage in the space.

    Loudspeaker:
    Transformer Tap Selection (in Watts):
    Unit of Measure:
    Room Length:
    Room Width:
    Ceiling Height:
    Listener Level:
    Average distance from ceiling to ear level:

    # of Rows:
    Number of Columns:
    Total Loudspeakers Required:
    Loudspeaker Spacing:
    First Loudspeaker "x" Placement:
    First Loudspeaker "y" Placement:
    Selected Tap Max SPL in Direct Field:
    Variance to Edge of Coverage:
    Amplifier Power Required for Selected Tap:
    Max Tap SPL in Direct Field:
    Amplifier Power Required for Max Tap:
    Your browser does not support the HTML5 canvas tag.
    Click Here to Download Offline Excel Version
