4 inch 2-way Pendant Mount Speaker

PM4FA-W
  • Dante enabled
  • GCK optimized
  • PoE enabled
  • Network Ready
  • EN54-16 Certified
  • Fault Reporting
    DESCRIPTION

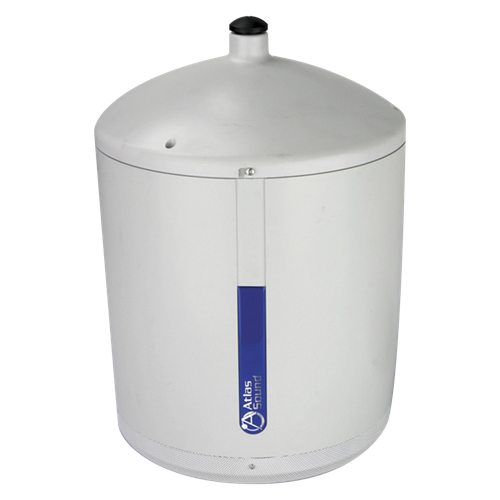

    Model PM4FA-W uses the familiar response and dispersion of AtlasIED's model FA134 high performance 4" Strategy Series® driver. This speaker is the same FA series device used in AtlasIED's popular FAP42T in-ceiling speaker package. Mounted down-firing in an attractive enclosure, the PM4FA provides natural sounding, wide coverage for low height installations while retaining very impressive full range frequency response for both music and paging applications.


    FEATURES
    • 4" FA134 Driver Provides 90º Degree (65 Degree Off-Axis) Coverage in the 2kHz Octave Band

    • 70.7V Taps @ 1, 2, 4, 8 and 16 Watts Plus 8-ohm Direct Input Via Concealed Terminal Block
    • 3 Meters of 2mm Cable & Mounting Hardware Included
    • Compatible with Standard 3/4" Ceiling Fan Hardware
    • Discreet, Attractive Enclosure

    SPECIFICATIONS
    Height 13 7/8" (35.2298 cm)
    Diameter 9 1/4" (23.495 cm)
    Shipping Weight 10.00 lbs (4.54 kgs)
    Power Taps 1, 2, 4, 8, 16 and 8 ohms
    Speaker Type Coaxial

    SUPPORT FILES
    CAD Drawing
    PM4FA
