Wireless Microphone Receiver

Availability: In stock
Your Price:

    The AtlasIED MWRCVR wireless receiver is the ideal choice for a variety of applications ranging from classrooms and conference rooms to lecture halls and live presentations. Designed to work in conjunction with either the MWHHM wireless handheld microphone or the MWBTP wireless belt pack microphone, the MWRCVR allows for great flexibility in sound reinforcement applications. With the ability to connect to a variety of devices via the included balanced XLR or unbalanced line output the MWRCVR can be used with a variety of amplifiers or mixers to address the needs of any installation. Multiple units can be used in a single installation since the unit receives transmission via the UHF frequency band and pairs to individual MWHHM or MWBTP on available channels. The unit can be used as a standalone piece on a shelf or desk or it can be rack mounted by itself or with a second MWRCVR using the rack mount kit, model MWRMK (sold separately).

    • Multi-Function LCD Display For Channel / Frequency, Volume Level, and Signal Strength

    • Patented Technology For 2-Way Data Transfer Between Transmitter And Receiver

    • 100 Frequencies Available Through The 20MHz Signal Band

    • Dual Antennas Reduce Distortion

    • IR Sensor for Connection to Wireless Microphone

    • Selectable Mic or Line Output

    Frequency Range UHF 566MHz - 585.8MHz
    Switching Bandwidth 20MHz
    Switchable Frequencies 100
    Display Type LCD
    Operating Range 100m Direct Sight
    Sensitivity -95dBm
    Signal to Noise Ratio > 110dB
    THD < 0.5%
    Power Supply 100-240V AC, 12V DC/1.6A
    Dimensions 7.87" x 5.91" x 1.73" (200mm x 150mm x 44mm)
    Weight 1.39 lbs (0.63kg)
    Warranty Period 12 months from date of purchase

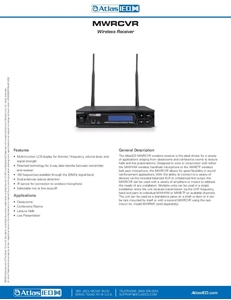

    MWRCVR Data Sheet (3 pages) MWRCVR Data Sheet (3 pages)
    MWRCVR Owners Manual (16 pages) MWRCVR Owners Manual (16 pages)
