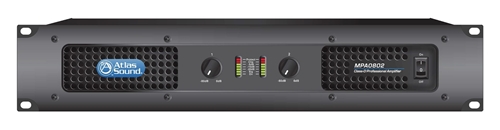

MPA Series 1500W Class D Amplifier

MPA0802

Only available in Asia

  • 4OHM8OHMCAPABLE
  • CCC
    DESCRIPTION

    PLEASE NOTE: This product is stocked and shipped from your warehouse in China. This product is ONLY available for sale in Asia.

    The MPA series power amplifiers by AtlasIED are a versatile, efficient, and affordable option for those requiring an all-purpose amplifier for paging and background music applications. Integrating Power Factor Correction (PFC) technology along with a universal mains regulated SMPS power supply and class D circuit topology, the MPA series delivers all the functional requirements needed for the majority of reinforcement applications.

    AtlasIED class D technology utilizes the most advanced electronics within the smallest form-factor to deliver highly efficient performance in a design that only uses 2RU of rack space. The innovative Power Factor Correction (PFC) technology and renowned R-SMPS power supply maximizes power consumption while minimizing loss, enabling each model to deliver higher output with less current draw. Additionally, PFC improves audio quality by reducing distortion through the generation of lower harmonics during the conversion power conversion process.

    MPA Series amplifiers provide unmatched system functionality and affordability while also delivering the highest levels of sonic performance.


    Features
    • Universal Mains Regulated SMPS power supply
      and Class D power modules
    • Implementing Power Factor Correction technology

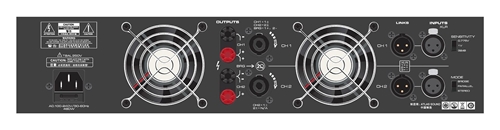

    • XLR signal input and link connectors
    • SpeakON NL4 and binding-post output connectors
    • Input sensitivity selector on the back panel (0.775v
      / 1V / 32dB)
    • Routing mode selector on the back panel (stereo /
      bridge / parallel)
    • CCC certification

    SPECIFICATIONS
    300W x 2
    500W x 2
    8Ω Bridged 1000W
    4Ω Bridged 1500W
    Gain 36dB
    Frequency Response 20Hz - 20kHz (+0/-1dB)
    THD+N ≤ 0.09%
    Input Sensitivity 32dB/1V/0.775V
    Input impedance 20kΩ/10kΩ
    S/N rate (A) ≥ 100dB
    Damping factor ≥ 500
    Conversion rate ≥ 10V/us
    Protection Soft Start, DC Offset, Short, Overload, Clip, Thermal
