15 inch LCD Single Rail Console - Replaced by the MMK17-RM

MMK15-RM
  • TAA
    DESCRIPTION

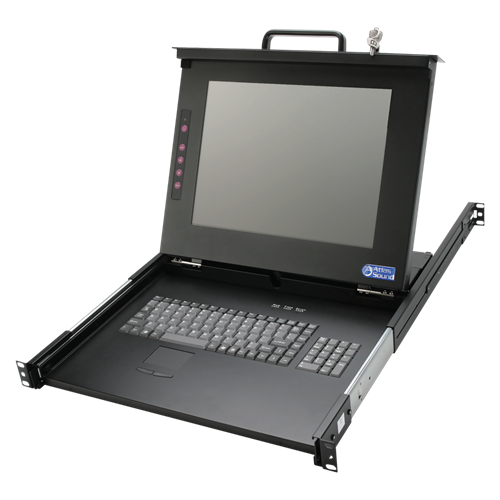

    The AtlasIED MMK15-RM is a convenience solution that is designed to make network system monitoring easy. This keyboard/screen combination unit is only 1RU high and fits into most standard 19" rack designs and can connect to any PC via a standard VGA connection. This design is critical for technicians or network administrators to have easy access to their system computer without having to have available space for an external monitor, keyboard and mouse. The design of the MMK15-RM allows the monitor, keyboard and mouse to be stowed safely within the rack when not in use and it can be easily accessed when needed. Racks and cabinets can remain locked until access is needed by an authorized staff member ensuring system security.

    This single rail console with optional modular KVM switch offers industrial level input solution to optimize your space utilization by controlling your systems in just 1RU. With its unique modular design, the (MMK-KVM8) 8 port KVM can be easily integrated. Expanding the ability of this 1RU Keyboard, Monitor, Mouse to control up to 8 computers.


    Features
    • Easy to Install, Single Rail Design
    • Supports SunT Native Resolution
    • Supports 17 Various Keyboard Languages (Increasing)
    • Bright Active TFT Display
    • OSD Function for LCD Display and KVM Switch
    • Durable Keyboard (Touchpad)
    • Panel Protected by Tempered Glass
    • Integration with KVM Switches

    SPECIFICATIONS
    Display Size 15"
    Certified to Safety Listing CE/FCC, UL/CUL/C-Tick, GOST
    Panel Type Active Matrix TFT LCD
    Maximum Resolution 1024 x 768 (XGA)
    R / L Viewing Angle 130°
    U / D Viewing Angle 100° (Typ)
    Contrast Ratio 400:1
    Brightness White 250 cd/m²
    Response Time Rising 5ms, Decay 11ms
    Power Consumption 16W, 10.41 for Panel
    Keyboard / Mouse 106 Key PS/2 Keyboard with Touch Pad
    System Cables VGA+PS/2 (x2), VGA+USB (x1)
    Power Source 100VAC~240VAC Input
    Operating System DOS, Microsoft WindowsT (3.1, 9x, 2000, NT4, ME, XP, 2003 Server), Linux, Novell 3.12-6, HP, UX, Sun
    Height 1.7" (44mm)
    Width 18.5" (470.1mm)
    Depth 17.6" (447.5mm)
    Warranty Period 12 months from date of purchase

    SUPPORT FILES
    MMK15-RM / MMK17-RM Datasheet (3 pages) MMK15-RM / MMK17-RM Datasheet (3 pages)
    MMK15-RM / MMK17-RM User Manual (28 pages) MMK15-RM / MMK17-RM User Manual (28 pages)
