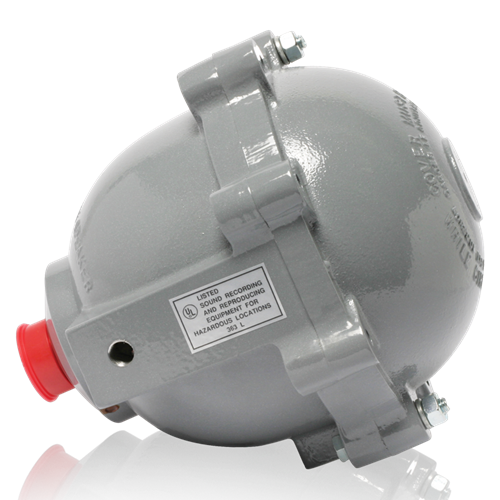

UL Listed Explosion-Proof Driver with 30-Watt 70V Transformer

Availability: In stock
MSRP (USD): $488.99
  • Horn Sold Separately
  • UL Listed
  • 70V100VCAPABLE
  • IP56

    MLE-1T speaker is an explosion-proof compression driver engineered for high-efficiency voice and electronic signal communication in hazardous areas. The driver is protected within a rugged die-cast aluminum housing, and have 30-watt power handling. Includes a factory-installed, internally mounted transformer (Note: To meet UL requirements transformer must be factory installed). Model is equipped with 1/2" conduit access and an adjustable mounting bracket.

    Optional projector horns are available in two styles to meet dispersion requirements. Model HLE_MLE-30 is a high-quality, polycarbonate projector that creates a 120 ° x 60 ° pattern for wide area coverage. Model HLE_MLE-32 is a spun aluminum bell providing a 95 ° circular distribution emphasis.

    **ONLY The HLE/MLE-30 and the HLE/MLE-32 Horns are UL Listed for use with the HLE or MLE Line of Explosion Proof Drivers **

    • 30 Watt, 8 Ohm High-Intelligibility Driver in Cast Aluminum Housing
    • Explosion-Proof Loudspeakers for Signal and Communications Systems
    • Efficiency of Reflex-Style Projectors with Wide Angle or Circular Sound Dispersion
    • Listed by UL for Use in Hazardous/Combustible Environments (Noted Models)
    • UL Certified, Safety Listed to UL1203

    Frequency Response 300Hz - 14kHz
    Sensitivity 107dB W/HLE_MLE-30 Horn & 110dB W/HLE_MLE-32 Horn
    Power Taps 1.8, 3.7, 7.5, 15, 30W @ 70.7V
    Power Rating 30 Watts Cont.
    Mounts Horn HLE_MLE-30, HLE_MLE-32 (See horn spec. for final product dimensions and dispersion)
    Warranty Period 60 months from date of purchase

    MLE Series Datasheet (3 pages) MLE Series Datasheet (3 pages)
    MLE Series Install Sheet (1 page) MLE Series Install Sheet (1 page)
    HLE/MLE-1(T) UL1203 Certificate of Compliance (1 page) HLE/MLE-1(T) UL1203 Certificate of Compliance (1 page)
