Infrared Repeater System Receiver, Decora®-style, White

M-1AJW
Availability: Temporarily Out of Stock - Product will ship once in stock.
Your price (USD): $82.99
    DESCRIPTION

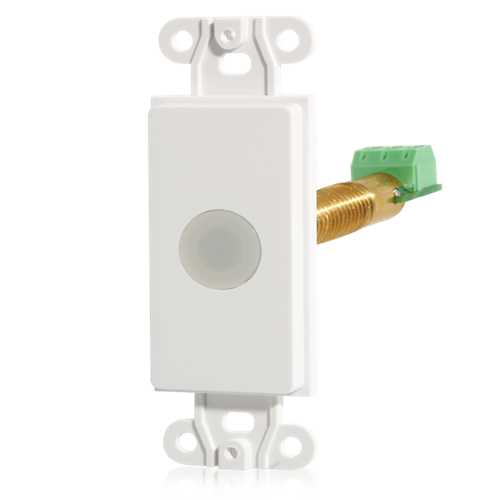

    AtlasIED M-1AJW IR repeater allows the operation of virtually any IR-controlled A/V component from multiple room locations. The M-1AJW repeater will receive the IR signal and rebroadcast it to the small F-1 flasher LED positioned on the front of each A/V component. The F-1 forwards the signal to the source component’s IR receiver.
    These micro repeaters feature an attractive, flush, white lens that blends with any white surface. Their high sensitivity enables use within a 40-foot range with fast reaction time and minimal interference. Repeater is installed on a white decorator-style subplate.


    FEATURES
    • Allows the Operation of Virtually Any IR-Controlled A/V Component From Multiple Room Locations
    • Receive the IR Signal and Rebroadcast It to the Small F-1 Flasher LED
    • Repeaters Are Available Installed on a White Decorator-Style Subplate

    SPECIFICATIONS
    Current Draw 13 mA
    Style Wall Mount
    Height 4 1/2" (11.43 cm)
    Width 2 3/4" (6.99 cm)
    Depth 2" (5.08 cm)
    Shipping Weight 1.00 lb (0.45 kgs)

    SUPPORT FILES
    Data Sheet

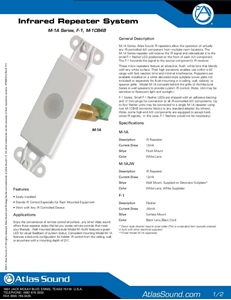

    ATS004122 Infrared Repeater System Datasheet RevA
