Load-A-Rack Installation Tool

Availability: In stock
Your Price:
  • UL Listed
  • CUL
  • BAA
  • TAA

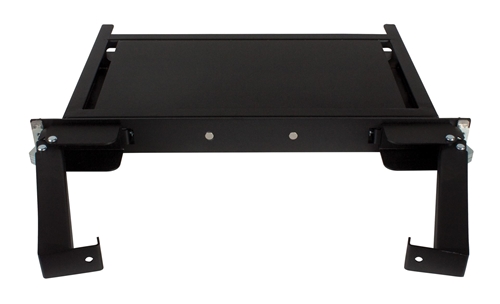

    Loading heavy components into an equipment rack can be a difficult process especially if one installer is working alone. The LAR150 is designed to make this process quicker and easier with less physical stress put on the installer. The LAR150 is a patent pending tool that works with any full rack width equipment and easily latches to the front rails of the rack being loaded, providing perfect horizontal and screw hole alignment. The LAR150 can support gear weighing up to 150 pounds, including multiple amplifiers stacked on top of each other. Installation time is decreased, workplace injuries are reduced, and profits improve with this easy to use accessory

    Watch the LAR150 in action and see how much time and money it can save you.


    • Works with Any Standard Width Equipment Rack
    • Supports Gear Up to 150 Pounds
    • Latches to Front Rack Rails Providing Horizontal and Screw Hole Alignment
    • US and Foreign Patents Pending

    Height 1.75" (44.45mm)
    Width 19" (482.6mm)
    Depth 10" (254mm)
    Depth with Handles 12.31" (313mm)
    Weight 6.5 lbs. (2.95kg)
    Warranty Period 12 months from date of purchase

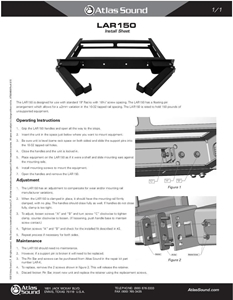

    Install Sheet (1 page) Install Sheet (1 page)
    LAR150 Datasheet (1 page) LAR150 Datasheet (1 page)
