VoIP Outdoor Intercom Station (for SIP applications)

IPS-VOI
  • PoE Enabled
  • Network Ready
  • SIP Compatible
  • GCK optimized

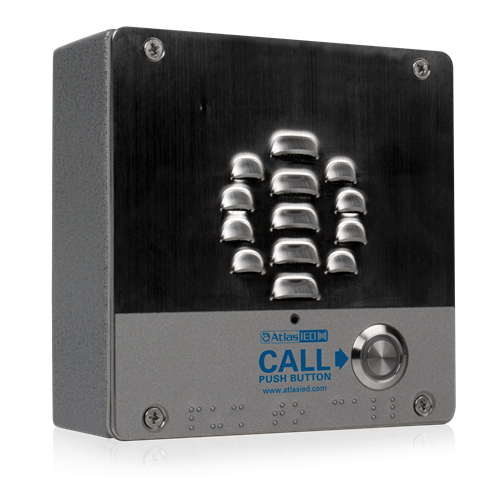

    AtlasIED IPS-VOI indoor/outdoor vandal proof, weather resistant VoIP intercom station with call-in button leverages the VoIP communication solution to provide signaling and talkback in environments that are susceptible to damage from abuse, moisture, corrosion, dust, vibration and extreme temperature.

    AtlasIED IPS-VOI registers as a communication endpoint directly to a SIP based Communications System to provide signaling and talkback in areas such as guard gates, banks or financial institutions, distribution centers, manufacturing warehouses, correctional institutions, and detention facilities while leveraging the WAN/LAN Network Architecture.

    When used within a Cisco Environment, these same SIP Strobes from AtlasIED can join Cisco’s Unified Survivable Remote Site Telephony (SRST) as supported devices within SRST endpoint architecture. Cisco’s SRST provides remote location call-processing redundancy when access to the centralized Cisco Unified Communications Manager is interrupted because of a WAN outage. The ability to extend LAN communication between any combination of phones and speakers with visual notifications is particularly critical during an emergency,which may be the actual cause of the WAN outage.

    Ideal for Corporate Applications, Education Institutions, Entertainment Complexes, Industrial Facilities, Government Buildings, Healthcare Facilities, Houses of Worship, Transportation Hubs; anywhere the need for critical alerts/public address exists and a single enterprise-class communications platform is preferred.

    FEATURES
    Adaptive Full-Duplex Voice Operation
    Network Web Management
    Network Adjustable Speaker Volume and Microphone Sensitivity
    PoE 802.3af Enabled
    SIP Compliant
    Supports Cisco SRST
    Doubles as a Paging Speaker
    Dry Relay Contact for Auxiliary Control
    IP65 Rated
    SPECIFICATIONS
    Ethernet I/F 10/100 Mbps
    Protocol SIP RFC 3261 Compatible
    Power Input PoE 802.3af Compliant or +8 to +12VDC @ 1000mA Regulated Power Supply
    Speaker Output 1 Watt Peak Power
    On-Board Relay 1A at 30 VDC
    Payload Types G711, A-law and μ-law
    Operating Temperature Range -10° to 50° C (14° to 122° F)
    Regulatory Compliance FCC Class A, UL 60950
    Width 5.12" (130.05mm)
    Height 5.12" (130.05mm)
    Depth 2.25" (57.15mm)
    Weight 2.0 lbs. (0.90kg)
    SUPPORT FILES

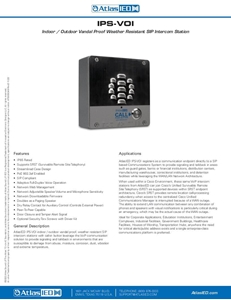

    Data Sheet IPS-VOI Data Sheet (4 pages) View | Download

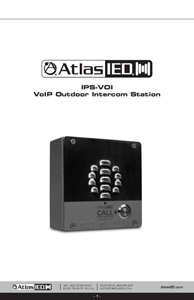

    Owners Manual IPS-VOI Owners Manual (6 pages) View | Download
