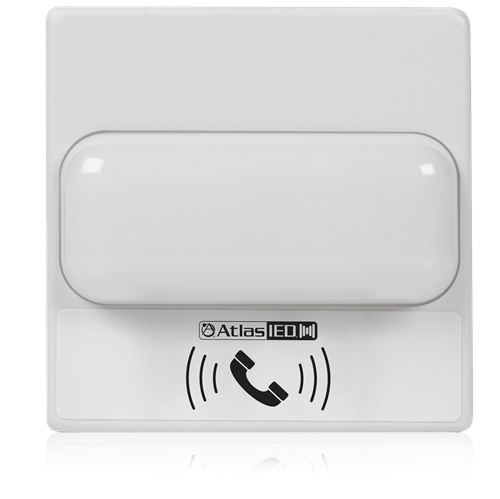

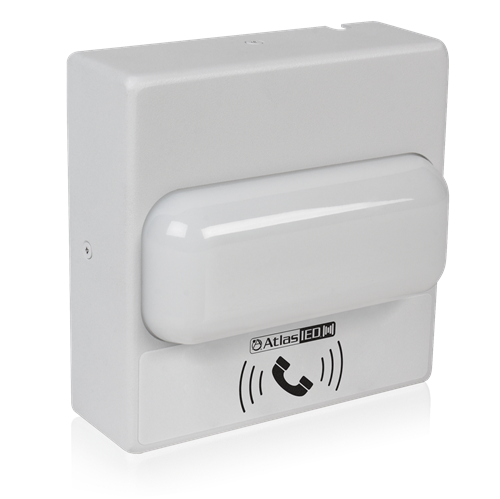

Wall Mount Strobe (SIP enabled)

  • PoE enabled
  • Network Ready
  • SIP Compatible

    AtlasIED IPS-SIS indoor wall mount SIP strobe leverages the VoIP communication solution to enhance critical alert messages with visible signaling in environments that require visual notification to overcome high ambient noise levels or large spaces.

    AtlasIED IPS-SIS registers as a communication endpoint directly to a SIP based communication system to provide visual signaling while leveraging the WAN/LAN network architecture.

    When receiving a SIP call or audio via a configured multicast RTP stream, the IPS-SIS becomes active and blinks. When the audio broadcast is complete, the IPS-SIS stops blinking.

    When used within a Cisco Environment, these same SIP strobes from AtlasIED can join Cisco’s Unified Survivable Remote Site Telephony (SRST) as supported devices within SRST endpoint architecture. Cisco’s SRST provides remote location call-processing redundancy when access to the centralized Cisco Unified Communications Manager is interrupted because of a WAN outage. The ability to extend LAN communication between any combination of phones and speakers with visual notifications is particularly critical during an emergency,which may be the actual cause of the WAN outage.

    Ideal for Corporate Applications, Education Institutions, Entertainment Complexes, Industrial Facilities, Government Buildings, Healthcare Facilities, Houses of Worship, Transportation Hubs; anywhere the need for critical alerts/public address exists and a single enterprise-class communications platform is preferred.

    • Meets ADA Requirements for Telephony Signaling and Notification
    • SIP Activation
    • Multicast Activation
    • Cisco SRST Support
    • 5 User Blink Scenes Available
    • User Configurable Brightness
    • Event-Controlled Relay
    • Program or Listen to up to 10 Multicast Addresses
    • Web-Based Setup
    • PoE Powered

    Ethernet I/F 10/100 Mbps
    Protocol SIP RFC 3261 Compatible
    Power Input PoE 802.3af Compliant or +8 to +12VDC @ 1000mA Regulated Power Supply
    Light Power Up to 90 Candela (User-Selectable)
    Flash Rate 5 User-Defined Scenes
    LED MTBF 100,000 Hours
    On-Board Relay 1A at 30 VDC
    Payload Types G711, A-law and μ-law
    Operating Temperature Range -10° C to 50° C (14° F to 122° F)
    Regulatory Compliance FCC Class A, UL 60950
    Height 4.5" (115mm)
    Width 4.5" (115mm)
    Depth 2.1" (55mm)
    Weight 1.0 lb. (0.45kg)
    Warranty Period 12 months from date of purchase

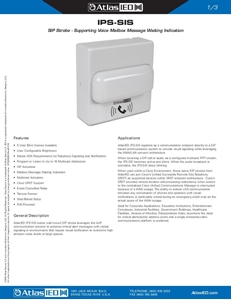

    IPS-SIS Datasheet (3 pages) IPS-SIS Datasheet (3 pages)

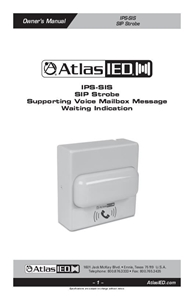

    IPS-SIS Owners Manual (6 pages) IPS-SIS Owners Manual (6 pages)
