PoE+ IP Compliant IP Dual Sided LED Display With Speakers and Flasher

IPDSC-DSE-PLUS
  • PoE enabled
  • G.711 Capable
  • G.722 Capable
  • Network Ready
  • GCK Optimized
  • InformaCast Compatible
  • SA-Announce Compatible
  • Flasher Included
  • LED Display Included
  • Powered
    DESCRIPTION

    THIS MODEL HAS BEEN REPLACED BY MODEL IP-DDS

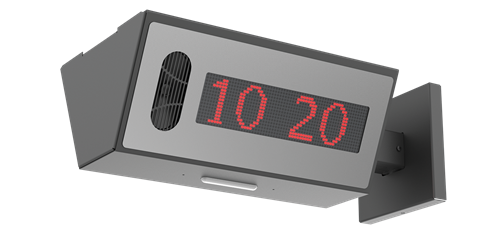

    Model IPDSC-DSE+ is an indoor dual sided display incorporating speakers and LED flasher. It can display time as well as scrolling text and leverages the VoIP communication solution to extend notifications with effective visual text alerts for high ambient noise areas or large spaces.

    AtlasIED IPDSC-DSE+ registers as a communication endpoint directly within InformaCast, SA-Announce, and GCK advanced notification applications, supporting both visual text and audio broadcast to enhance physical security while improving day-to-day communications through advanced alerting, bell schedules, pre-recorded, scheduled announcements & intercom, while leveraging the WAN/LAN network architecture.

    When used within a Cisco Environment, these same IP dual sided LED displays with speakers from AtlasIED can join Cisco’s Unified Survivable Remote Site Telephony (SRST) as a supported device within SRST endpoint Architecture. Cisco’s SRST provides remote location call-processing redundancy when access to the centralized Cisco Unified Communications Manager is interrupted because of a WAN outage. The ability of LAN communication between any combination of phones and speakers is particularly critical during an emergency (which may be the actual cause of the WAN outage).

    When receiving an emergency notification, the flasher on the IPDSC-DSE+ becomes active and blinks. When the emergency notification is complete, the IPDSC-DSE+ flasher stops blinking.

    In addition to visual signaling, the IPDSC-DSE+ can provide audio via its integrated speakers or to support distributed analog public address systems with the convenience of line level audio outputs. This line level output is ideal for use with AtlasIED AA, PA, DPA, or CP series amplifiers to power large zones of traditional 25V, 70.7V, or 100V AtlasIED speakers or paging horn speakers.

    It also includes 2 GPI inputs, 1 GPI output, and microphone input for talk back or listen applications. The GPI/O ports offer triggering for critical alert notification or unified connectivity of third party systems.

    Under Title II of the ADA, all state and local governments are required to take steps and ensure effective communication to people with disabilities. The AtlasIED IPDSC-DSE+ is an indoor dual sided display incorporating speakers and flasher provides effective communication for all individuals.


    Features
    • Auto Registration and Auto Provisioning
    • 16 x 64 LED Dot Matrix Display
    • Network Controlled, High Visibility Red LED Display
    • Multicast Enabled Network Clock Control
    • Cisco SRST compliant
    • Power Using IEEE802.3af Compliant PoE+ Switch or Local 12VDC-18VDC PSU
    • RJ-45 Female Input on PCB

    SPECIFICATIONS
    Width 19.94 (506.5mm)
    Height 9.9" (251mm)
    Depth 7" (177mm)

    SUPPORT FILES
    IPDSC-DSE+ CAD FILE IPDSC-DSE+ CAD FILE
    IPDSC-DSE+ Revit Drawing IPDSC-DSE+ Revit Drawing
    IPDSC-DSEPLUS Datasheet (6 pages) IPDSC-DSEPLUS Datasheet (6 pages)
