PoE+ IP Compliant IP Dual Sided LED Display With Flasher

IPDC-DSE-PLUS
  • CETL
  • Network Ready
  • GCK Optimized
  • InformaCast Compatible
  • SA-Announce Compatible
  • Flasher Included
  • LED Display Included
  • One Cable Installation
  • Powered
    DESCRIPTION

    THIS MODEL HAS BEEN REPLACED BY MODEL IP-DD

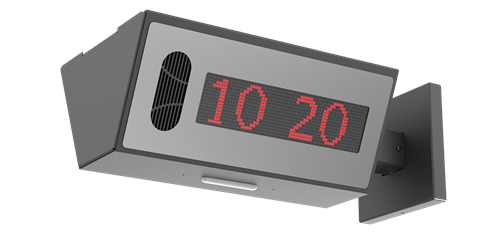

    Model IPDC-DSE+ is an indoor dual sided display with LED flasher that can display time as well as scrolling text. It leverages the VoIP communication solution to extend notifications with effective visual text alerts for high ambient noise areas or large spaces.

    AtlasIED IPDC-DSE+ registers as a communication endpoint directly within InformaCast, SA-Announce, and GCK advanced notification applications, supporting their visual text broadcast to enhance physical security while improving day-to-day communications through advanced alerting, bell schedules, pre-recorded & scheduled announcements, while leveraging the WAN/LAN network architecture.

    When receiving an emergency notification, the flasher on the IPDCDSE+ becomes active and blinks. When the emergency notification is complete, the IPDC-DSE+ flasher stops blinking.

    In addition to visual signaling, the IPDC-DSE+ can provide audio to support distributed analog public address systems with the convenience of line level audio outputs. This line level output is ideal for use with AtlasIED AA, PA, DPA, or CP series amplifiers to power large zones of traditional 25V, 70.7V, or 100V AtlasIED speakers or paging horn speakers.

    It also includes 2 GPI inputs, 1 GPI output and microphone input for talk back or listen applications. The GPI/O ports offer triggering for critical alert notification or unified connectivity of third party systems.

    Under Title II of the ADA, all state and local governments are required to take steps and ensure effective communication to people with disabilities. The AtlasIED IPDSC-DSE+ is an indoor dual sided display incorporating speakers and flasher provides effective communication for all individuals.


    Features
    • Auto Registration and Auto Provisioning
    • 16 x 64 LED Dot Matrix Display
    • Network Controlled, High Visibility Red LED Display
    • Multicast Enabled Network Clock Control
    • Cisco SRST compliant
    • Power Using IEEE802.3af Compliant PoE+ Switch or Local 12VDC-18VDC PSU
    • RJ-45 Female Input on PCB

    SPECIFICATIONS
    Width 19.94 (506.5mm)
    Height 9.9" (251mm)
    Depth 7" (177mm)

    SUPPORT FILES
    IPDC-DSE+ SEREIS CAD FILE IPDC-DSE+ SEREIS CAD FILE
    IPDC-DSE+ Revit Drawing IPDC-DSE+ Revit Drawing

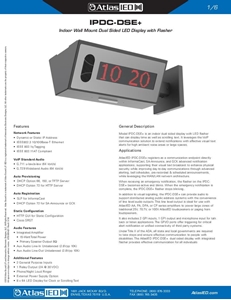

    IPDC-DSE+ Datasheet (6 pages) IPDC-DSE+ Datasheet (6 pages)
