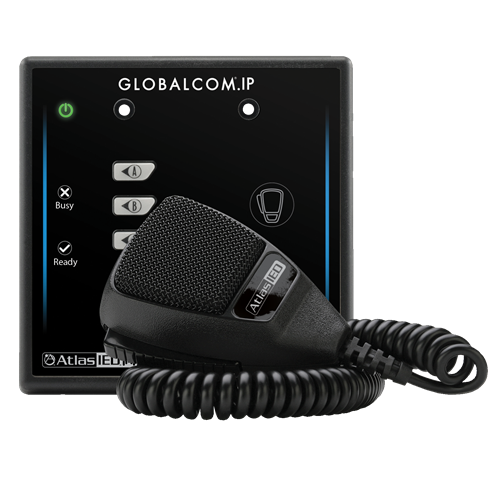

GLOBALCOM®.IP Digital Microphone Station with 4 Buttons and Dante® Message Channels

Your Price:
  • Software License Required
  • Supports 116D Controller
  • Dante enabled
  • Network Ready
  • PoE enabled
  • Fault Reporting

    The IPCSD4 digital microphone station is a 4-button device for initiating audio / visual announcements, messages and pages with the GLOBALCOM®.IP IP108-D or IP116-D Announcement Control Systems. The IPCSD4 uses a single Ethernet interface for audio and control data.  The IPCSD4 is fully compatible with IEEE 802.3af standard for Power over Ethernet (PoE), allowing the microphone station to be powered directly from any standard off-the-shelf PoE switch.

    The IPCSD4 utilizes Dante® technology for transporting high-quality, low-latency digital audio over Ethernet. The IPCSD4 microphone station may be used for emergency evacuation and life safety systems. Instead, in a dual-use system, these microphone stations may be used for everyday paging functions.

    It is compatible with IP108-D or IP116-D ACS Controllers with Dante™ capability.

    • Immediate Digitization of Full Bandwidth Audio
    • Digital Audio Transmission Over Standard Ethernet Connection
    • Mounts Using Standard 1- or 2-Gang Electrical Box
    • Power, Busy, and Ready LED Indicators

    Frequency Response +2dB, -5dB (22Hz - 22kHz, Input Level)
    Total Harmonic Distortion <1.0% (22Hz - 22kHz, Input Level)
    Signal to Noise Ratio >85dB (22Hz - 22kHz, Input Level)
    Sample Rate 48kHz
    Compression Threshold -14dBu
    Operating Temperature Range +32˚F to +104˚F (0˚C to +40˚C)
    Dimensions 4.95" W x 4.95" H x 1.9" D
    Analog-to-Digital Converter, A/D 24 Bit
    Storage Temperature Range –40˚F to +158˚F (–40˚C to +70˚C)
    Supply Voltage 48VDC
    Power Consumption < 4W
    Warranty Period 36 months from date of purchase

    Microphone Cleaning Statement (1 page) Microphone Cleaning Statement (1 page)

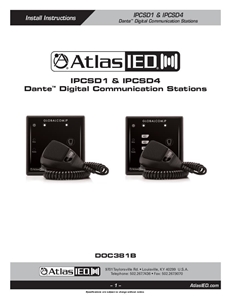

    IPCSD1 and IPCSD4 Installation Instructions (16 pages) IPCSD1 and IPCSD4 Installation Instructions (16 pages)
