GLOBALCOM® IP200 Announcement Control System

  • Software License Required
  • GCK Optimized

    The IP200 Series Announcement Control System (ACS) is the heart of AtlasIED’s GLOBALCOM® enterprise-wide communications management system. It manages the flow of announcements and messages between network endpoints such as digital communication stations, zone controllers, network power amplifiers, IP-based loudspeakers and other types of IP endpoints. Additionally, it serves as a gateway for external I/O devices, VoIP telephone systems, and analog audio to be incorporated into the ecosystem.

    Each model is 'plug and play' ready with GCK application software installed and ready to be easily configured via an intuitive Microsoft® Windows® application.

    All IP200 Series Controllers support VoIP communications with models available supporting Audio over Ethernet (AoE) functionality using Audinate® Dante™ or CobraNet® digital audio transport. The IP216-D works with GLOBALCOM® Dante™ endpoints, while the IP216-C works with GLOBALCOM® CobraNet® endpoints. Our VoIP is Wide Area Network (WAN) enabled allowing communication to be routed across an entire enterprise or to another LAN location.

    • Pre-installed GLOBALCOM®-capable software
    • GLOBALCOM® Device Discovery and Management
    • Dante™ or CobraNet® Controller Support
    • Scheduled or Triggered Event Management
    • EQ and Ambient Noise Analysis Configuration
    • Paging Control and Monitoring
    • IPX Endpoint Management over LAN or WAN

    Processor Intel® Xeon Quad Core™
    Ethernet I/F RJ-45 100Mbps / 1000Mbps
    Storage SSD (RAID1)
    Rack Space 1RU, 19"
    Dimensions (HxWxD) 1.67" x 17.09" x 21.5" (without bezel) (42.8mm x 434mm x 664mm)
    Weight 26 lbs (12kg)
    Operating Voltage 100-240 VAC Auto-ranging
    Power Supply Dual 350W Hot Plug Power Supplies
    Power Consumption 100W (average)
    Warranty Period 36 months from date of purchase

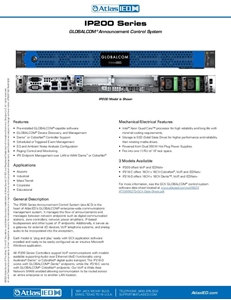

    IP200 Series Data Sheet (4 pages) IP200 Series Data Sheet (4 pages)
