4x4 CobraNet Smart Zone Output Processor

IED1544ZOPC
Your Price:
$3,556.99
  • GCK Optimized
  • Dante Network Enabled
  • Power Supply Sold Separately
  • Rack Kit Sold Separately
    DESCRIPTION

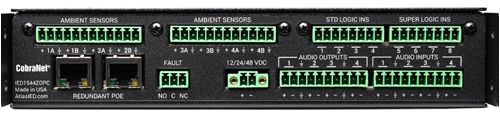

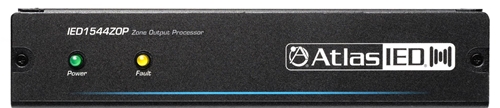

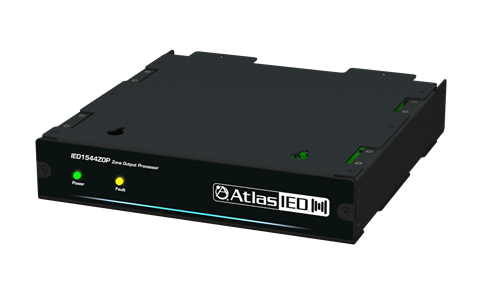

    The ZOP (IED1544ZOP/IED1544ZOPC) zone output processor is a GLOBALCOM® auxiliary device for integrating line level analog devices with GLOBALCOM® Series Announcement Control Systems. The ZOP acts as a GCK endpoint to provide an I/O interface with analog audio devices using an EQ and level control.

    Eight logic inputs are included for triggering actions in GCK, four of these as standard logic inputs and four as supervised inputs for detecting shorted or broken wires. The ZOP provides a redundant PoE connection that can be supplemented with an optional 12/24/48V DC auxiliary power connection for non-PoE switches.

    Up to eight ambient noise sensors (IED0540S) can be connected to GCK for automatic level adjustment. Up to 2 sensors per channel can be used to adjust levels locally or on a remote T112/T112C. Using GCK, levels can automatically be adjusted higher so that audio can be heard over a louder area and lower over a quieter area.

    For detecting shorted speaker lines from an amplifier, the line level inputs may be used with an end-of-line module (IEDM596EOL) and indicator (IEDM596SGFI) that can be purchased separately. A fault relay on the back activates automatically when a fault is detected.

    The zone output processor comes with rack mount kit PA702-RMK.

    Optional Accessories Sold Separately

    • IED1112MPS-MOD, single unit power supply
    • IED1112PS rack mount, 5-output power supply, with optional redundant supply

    Features
    • GCK Integration for Analog Audio Devices
    • Supports 4x4 CobraNet® Digital Audio
    • 4x4 Channel Balanced Line Level Audio I/O
    • Redundant PoE
    • 8 Ambient Sensor (IED0540S) Connections for Automatic Level Adjustment to Ambient Noise
    • 4 Standard Logic Inputs
    • 4 Supervised Logic Inputs for Detecting Shorted or Broken Wires
    • 7-band Parametric EQ with Low and High Pass Filter Per Channel
    • Supervision of Speaker Lines with Indicator (IEDM596SGFI) and
      End-of-Line Module (IED5411EOL)
    • Fault Relay

    SPECIFICATIONS
    Frequency Response ±0.3 dB, 20 Hz - 20 kHz Unweighted
    THD <0.01%, 20 Hz - 20 kHz Unweighted
    Signal to Noise Ratio >90 dB, 20 to 20kHz, Unweighted
    Level Control Per Input/Output Channel
    EQ Control 7 Parametric Plus High-Pass & Low-Pass Per Channel
    Power Requirements 2-pin Lugless Compression-Type (Nominally Use 12, 24 or 48V Supply) Screw Terminal Max Power
    Height 1.75" (44 mm)
    Width 8.5" (216 mm)
    Depth 8.9" (225 mm)
    Weight 3.4 lbs (1.5kg) 3.9 lbs (1.8kg) with Rack Hardware
    Warranty Period 36 months from date of purchase

    SUPPORT FILES
    1544ZOP Installation Manual 1227B (14 pages) 1544ZOP Installation Manual 1227B (14 pages)
    IED1544ZOP Data Sheet (4 pages) IED1544ZOP Data Sheet (4 pages)
    IED1544ZOPC 2D Drawings - CAD IED1544ZOPC 2D Drawings - CAD
