GLOBALCOM® OutX2 Output Module

IED1502AO
Your price (USD): $1,247.99
  • Software License Required
  • GCK optimized
  • CobraNet enabled
  • Network Ready
    DESCRIPTION

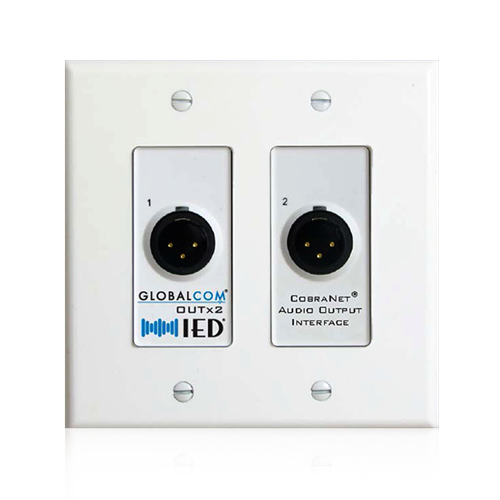

    The OutX2 CobraNet® Audio Output Interface is a cost effective two output line level wall box or DIN Rail mountable device. The OutX2 features two balanced outputs. The OutX2 is designed to fit into most dual gang junction boxes or DIN Rail 3 (35mm) applications and is PoE enabled, so all connectivity (both power and audio data) to the OutX2 is provided by a single CAT-5 cable. Each output can be configured as an individual zone to feed announcements to other systems.


    FEATURES
    • Two Balanced Female XLR Output Connectors
    • Mounts in a Standard Dual Gang Junction Box or DIN Rail 3
    • Powered by a Standard PoE Network Switch
    • Outputs are Programmed as System Zones to Be Used to Route Announcements to Other Systems

    SPECIFICATIONS
    Output Type Balanced (Can be Wired as Unbalanced)
    THD <0.05%, 1kHz, 3dB Below DAC Full Scale
    Operating Temperature Range +32°F - +104°F (0°C - +40°C)
    Output impedance 200Ω Balanced, 100Ω Unbalanced
    Minimum Output Level (Balanced) +10dBu
    Maximum Output Level (Unbalanced) +4dBu
    Noise -83dBu
    Frequency Response 20Hz - 20kHz, ±1dB (100kΩ Load)
    Device Power Class 2 802.3af PoE PD Compliant
    PoE Power Consumption 4W
    Storage Temperature Range -4°F - +158°F (-20°C - +70°C)
    Height 2.75" (7.0cm)
    Width 3.60" (9.2cm)
    Depth 1.88" (4.8cm)
    Recommended Minimum Mounting Depth 2.50" (6.4cm)
