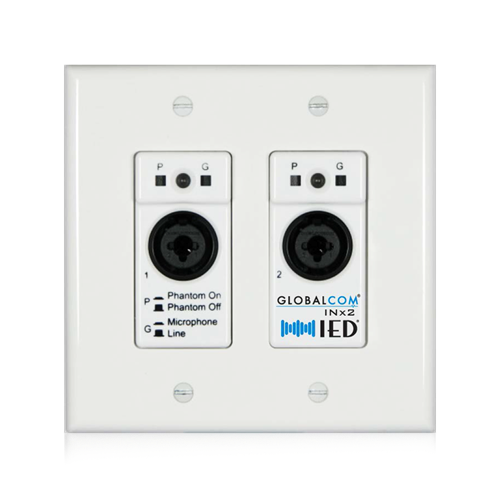

GLOBALCOM® InX2 Input Module InX2 Input Module

IED1502AI
Your price (USD): $1,247.99
  • Software License Required
  • GCK optimized
  • CobraNet enabled
  • Network Ready
    DESCRIPTION

    The InX2 CobraNet® Audio Input Interface is a cost effective two input, mic/line level wall box or DIN Rail mountable device. The InX2 features switchable mic/line gain, Switchable +12 V phantom power, and clipping indicators for each channel. The InX2 is designed to fit into most dual gang junction boxes or DIN Rail 3 (35mm) applications. It is PoE enabled, so all connectivity (both power and audio data) to the InX2 is provided by a single CAT-5 cable. The InX2 is the ideal solution for inserting background music or program audio into the system.


    FEATURES
    • Two Balanced Female XLR/TRS Combo Input Connectors
    • Mounts in a Standard Dual Gang Junction Box or DIN Rail 3
    • Input Gain Selection for Line and Mic, Switchable Per Channel
    • 12VDC Phantom Power, Switchable Per Channel
    • Bi-Color LED Indicators for Signal Present and Clipping
    • Powered by a Standard PoE Network Switch
    • Inputs can be Used for Background Music or Local
      Program Audio Source

    SPECIFICATIONS
    Input impedance (Mic) 2kΩ
    Maximum Input Signal +8dBu
    THD <0.05%, 1kH, 3dB Below Clipping
    Input Impedance (Line) 120kΩ
    Mic Gain +30dBu
    Operating Temperature Range +32°F - +104°F (0°C - +40°C)
    EIN (Mic Mode) -109dBu
    Frequency Response (Mic Gain) 50Hz - 20kHz, ±1dB
    Frequency Response (Line Gain) 20Hz - 20kHz, ±1dB
    Phantom Power +12VDC
    Device Power Class 2 802.3af PoE PD Compliant
    PoE Power Consumption 4W
    Storage Temperature Range -4°F - +158°F (-20°C - +70°C)
    Height 2.75" (7.0cm)
    Width 3.60" (9.2cm)
    Depth 1.88" (4.8cm)
    Recommended Minimum Mounting Depth 2.50" (6.4cm)
