Rack Power Supply System for up (8) 1000 Series GLOBALCOM® Units

IED1112PS
    DESCRIPTION

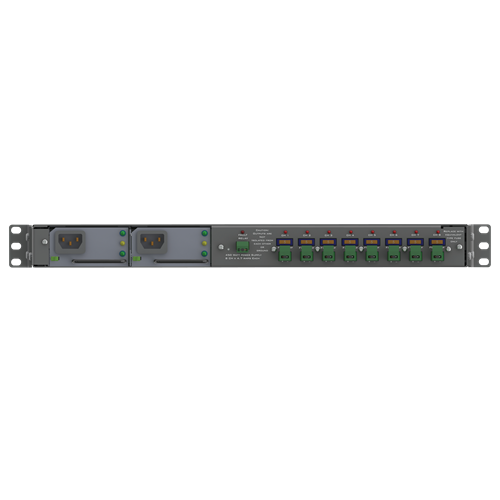

    The 1112PS is a rack mount power supply designed to provide 12V DC power to GLOBALCOM® devices. The 1112PS ships with a single 1112PSM power supply module capable of delivering up to 37 Amps of 12V DC power to as many as eight (8) GLOBALCOM® devices. This allows a single power supply to power multiple 1100ACS, 1200ACS, 1100MSG, 1200MSG, and 1300CNB units. Each unit is connected to a fused power output port on the rear of the 1112PS. The connectors are secured using the supplied cover plate to prevent unwanted disconnections. A second 1112PSM power supply module can be added to provide redundancy. If a module fails, the remaining module will assume the full load. A module can be replaced while the other module is left on without interrupting power to the system. A relay is provided that will de-energize if a power supply module has failed. This closure can be monitored through the supervision system.


    FEATURES
    • Small 1RU chassis provides a maximum of 37 Amps of 12VDC power
    • Individual power connections for up to eight (8) GLOBALCOM devices
    • Individual fuses protect each output
    • Universal input voltage for worldwide use
    • Rear security cover to prevent unwanted removal of any connections
    • Optional second 1112PSM power supply module to provide a redundant power solution
    • Fault relay provides notification if a power supply module fails

    SPECIFICATIONS
    Power Supply Voltage 100 - 240VAC
    Operating Temperature Range 32°F - 104°F (0°C - 50°C)
    Rated Input Current (Per Supply) 8 Amps Max
    Rated Output Voltage +12VDC (±5%)
    Rated Output Current (Total) 37 Amps
    Rated Output Current (Per Output) 4.6 Amps
    Relay Contact Rating Form C, 1A 30VDC, 0.3A 125VAC
    Input IEC 60320 Type C-13
    Output 2-Pin Phoenix, 5.08mm Spacing
    Fault Relay 3-Pin Phoenix, 3.8mm Spacing
    Storage Temperature Range -40°F - 158°F (-40°C - 70°C)
    Height 1.75" (4.4cm)
    Width (Without Rack Mount Ears) 17" (43.2cm)
    Depth 12.25" (31.1cm)
    Recommended Mounting Depth 18" (45.7cm)
    Weight (With Single IED1112PSM Module) 13 lbs. (5.9kg)
    Weight (With Dual IED1112PSM Modules) 15.6 lbs. (7.1kg)
