PoE+ Indoor Wall Mount IP Horn Loudspeaker with LED Display

I8SCH+
  • Software License Required
  • Enclosure Sold Separately
  • CETL
  • G.722 Capable
  • GCK Optimized
  • Network Ready
  • PoE Enabled
  • One Cable Installation
  • G.711 Capable
  • InformaCast Compatible
  • SA-Announce Compatible
  • Powered
  • LED Display Included

    AtlasIED I8SCH+ indoor wall mount IP loudspeaker with Horn and display leverage the VoIP Communication solution to extend tele-presence with enhanced audio for those environments where network-wide communication is desired and that require large loudspeakers with high output to overcome high ambient noise areas or large spaces.

    AtlasIED I8SCH+ registers as a communication endpoint directly within InformaCast, and SA-Announce Advanced Notification applications, supporting both visual text and audio broadcast to enhance physical security while improving day-to-day communications through advanced alerting, bell schedules, pre-recorded, & scheduled announcements, while leveraging the WAN/LAN Network Architecture.

    When used within a Cisco Environment, these same IP loudspeakers from AtlasIED can join Cisco’s Unified Survivable Remote Site Telephony (SRST) as a supported device within SRST endpoint Architecture. Cisco’s SRST provides remote location call-processing redundancy when access to the centralized Cisco Unified Communications Manager is interrupted because of a WAN outage. The ability of LAN communication between any combination of phones and loudspeakers is particularly critical during an emergency (which may be the actual cause of the WAN outage).

    I8SCH+ IP loudspeakers with display provide equality “effective communication”.

    “Under Title II of the ADA, all state and local governments are required to take steps to ensure that their communications with people with disabilities are as effective as communications with others.”

    What does it mean for communication to be “effective”? Simply put, “effective communication” means that whatever is written or spoken must be as clear and understandable to people with disabilities as it is for people who do not have disabilities.

    Where 3rd party notification applications are not required, the I8SC+ loudspeakers can register as SIP devices directly to a SIP server or VoIP Communications Manager for critical alerts /public address applications.

    Ideal for Corporate Applications, Education Institutions, Entertainment Complexes, Industrial Facilities, Government Buildings, Healthcare Facilities, Houses of Worship, Transportation Hubs - anywhere critical alerts / public address needs exist, and prefer using a single enterprise-class communications platform.

    Features

    I8SCH+ indoor loudspeakers are fitted with a highly efficient 15-Watt compression driver/loudspeaker with a proven record of outstanding service reliability. A double re-entrant design provides superior sound level output and clear audibility of voice and tone alert notification and paging.

    The Grills for the I8SCH+ IP loudspeakers are made of 18-gauge metal construction that provides security and durability in commercial applications. The baffle is finished in neutral white electrostatic powder coat and is packaged with all necessary mounting screws.

    While in Standby, the I8SCH+ displays time and eliminates the need for a separate master clock system by utilizing national time synchronization protocol (NTP) to stay up to date. When active, the I8SCH+ display changes from time to visual notifications by Scrolling text content over the 16 X 64 high-resolution LED digital readout.

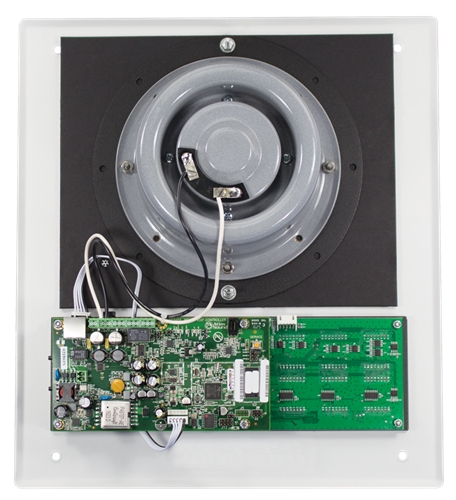

    All Atlas IP loudspeakers consist of a factory assembled horn loudspeaker, grill, and PCB amp/control board that is securely mounted to the rear of the grill.

    The I8SCH+ features include auto-provisioning and auto-registration. This is an easy and timesaving way to configure our IP loudspeakers on your Voice VLAN, similar to a VoIP handset. By sitting on the same VLAN, both VoIP phones and IP loudspeakers share the same Quality of Service (QoS) so communications are always secure and guaranteed

    Includes GPI/O ports offer trigger for critical alert notification, or unified connectivity of third party systems.

    Mounting hardware: (sold separately)

    • Wall – Flush (In-Wall): FEST-I8SC
    • Wall – Surface (On-Wall): SEST-I8SC
    • Wall – Slanted (On-Wall): SEA-I8SC
    FEATURES
    Natively Auto Registers as an Endpoint in GlobalControlKom®, InformaCast®, or SA-Announce Notification Applications
    Works with New or Existing Multicast Enabled Local Area Networks
    Compatible with SIP (Session Initiation Protocol) VoIP systems
    IEEE 802.3af or 802.3at Compliant POE/POE+
    Primary and Aux Speaker Outputs
    Emergency Alert Trigger
    Relay Output
    Aux Audio Input
    External Power Supply Option
    Dynamic or Static IP Address
    Phone/Night Loud Ringer
    Static Multicast Audio Reception
    Custom Event Notification Scripting
    Auto Provisioning
    Secure Web Configuration
    Highly Efficient APF Horn Loudspeaker Provides Greater Output and Coverage
    Includes LED Display with Capability to Display Time or Scrolling Text for Announcements or Emergency Messages
    SPECIFICATIONS
    Connector Type RJ-45
    Height 14" (36.5 cm)
    Width 12" (32.7 cm)
    Depth 4" (12.3 cm)
    Safety Listed 60950-1
    SUPPORT FILES
    Data Sheet

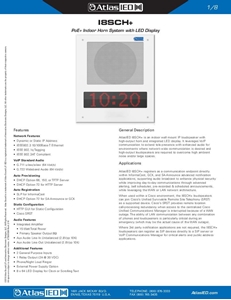

    I8SCH+ Data Sheet (8 pages)
    Installation Sheet
    Installation Sheet (4 pages)
    CAD Drawing
    I8SCH+
    Software/Firmware
    Firmware change log
    Software/Firmware
    Firmware version 12.16.3-7
    Software/Firmware
    Firmware version 12.18.01
    Software/Firmware
    Firmware version 12.20.00
    Revit Drawing
    I8SCH+ Revit Drawing
    Software/Firmware
    Firmware version 12.21.03
