THIS MODEL HAS BEEN REPLACED BY MODEL IP-SDM
AtlasIED I8SC+ indoor wall mount IP speaker with display leverage the VoIP Communication solution to extend tele-presence with enhanced audio for those environments where network-wide communication is desired and that require large speakers with high output to overcome high ambient noise areas or large spaces.
AtlasIED I8SC+ registers as a communication endpoint directly within InformaCast, and SA-Announce Advanced Notification applications, supporting both visual text and audio broadcast to enhance physical security while improving day-to-day communications through advanced alerting, bell schedules, pre-recorded, & scheduled announcements, while leveraging the WAN/LAN Network Architecture.
When used within a Cisco Environment, these same IP speakers from AtlasIED can join Cisco’s Unified Survivable Remote Site Telephony (SRST) as a supported device within SRST endpoint Architecture. Cisco’s SRST provides remote location call-processing redundancy when access to the centralized Cisco Unified Communications Manager is interrupted because of a WAN outage. The ability of LAN communication between any combination of phones and speakers is particularly critical during an emergency (which may be the actual cause of the WAN outage).
I8SC+ IP speakers with display provide equality “effective communication”.
“Under Title II of the ADA, all state and local governments are required to take steps to ensure that their communications with people with disabilities are as effective as communications with others.”
What does it mean for communication to be “effective”? Simply put, “effective communication” means that whatever is written or spoken must be as clear and understandable to people with disabilities as it is for people who do not have disabilities.
Where 3rd party notification applications are not required, the I8SC+ speakers can register as SIP devices directly to a SIP server or VoIP Communications Manager for critical alerts /public address applications.
Ideal for Corporate Applications, Education Institutions, Entertainment Complexes, Industrial Facilities, Government Buildings, Healthcare Facilities, Houses of Worship, Transportation Hubs - anywhere critical alerts / public address needs exist, and prefer using a single enterprise-class communications platform.
I8SC+ indoor speakers are fitted with a dual cone 8" (205mm) speaker with a 10oz (260g) ceramic magnet that is optimized for voice intelligibility.
The grills for the I8SC+ IP speakers are made of 18-gauge metal construction that provides security and durability in commercial applications. The baffle is finished in neutral white electrostatic powder coat and is packaged with all necessary mounting screws.

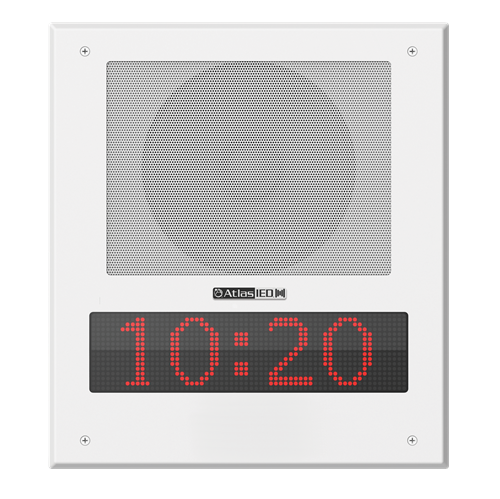

While in Standby, the I8SC+ displays time and eliminates the need for a separate master clock system by utilizing national time synchronization protocol (NTP) to stay up to date. When active, the I8SC+ display changes from time to visual notifications by Scrolling text content over the 16 X 64 high-resolution LED digital readout.

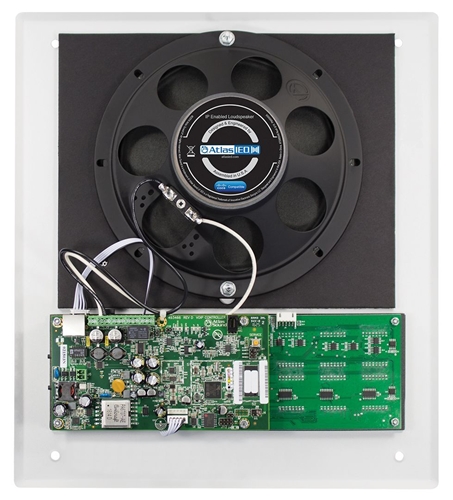

All Atlas IP speakers consist of a factory assembled speaker, grill, and PCB amp/control board that is securely mounted to the rear of the grill.
The I8SC+ features include auto-provisioning and auto-registration. This is an easy and time-saving way to configure our IP speakers on your Voice VLAN, similar to a VoIP handset. By sitting on the same VLAN, both VoIP phones and IP speakers share the same Quality of Service (QoS) so communications are always secure and guaranteed
Includes GPI/O ports offer trigger for critical alert notification, or unified connectivity of third party systems.
Mounting hardware: (sold separately)
- Wall – Flush (In-Wall): FEST-I8SC
- Wall – Surface (On-Wall): SEST-I8SC
- Wall – Slanted (On-Wall): SEA-I8SC
