UL Listed Explosion-Proof Driver with 60-Watt 70V Transformer for Use in Hydrogen Environments

HLE-3T
Availability: In stock
MSRP (USD): $607.99
  • Horn Sold Separately
  • UL Listed
  • 70V100VCAPABLE
  • IP56
    DESCRIPTION

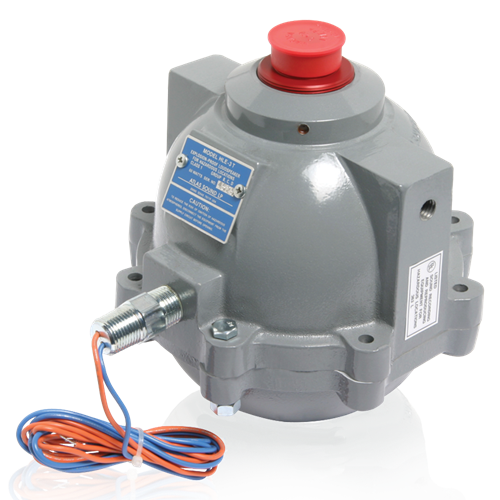

    HLE-3T speaker is an explosion-proof compression driver/horn assembly engineered for high-efficiency voice and electronic signal communication in hazardous areas. Drivers, which are protected within a rugged die-cast aluminum housing, have 60-watt power handling. Includes a factory-installed, internally mounted transformer (Note: To meet UL requirements transformer must be factory installed). Model is equipped with 1/2" conduit access and an adjustable mounting bracket.

    **ONLY The HLE/MLE-30 and the HLE/MLE-32 Horns are UL Listed for use with the HLE or MLE Line of Explosion Proof Drivers **


    FEATURES
    • 60 Watt, 70 Volt Driver (T-18 xfmr)
    • Approved for Class 1/Groups B, C & D Environments
    • Can be Used with Either HLE/MLE-30 OR HLE/MLE-32 Horn Projectors
    • Explosion-Proof Loudspeaker Driver for Signal and Communications Systems
    • Listed by UL for Use in Hazardous/Combustible Environments (Noted Models)
    • UL Certified, Safety Listed to UL1203, UL1604, UL2279, and UL913

    SPECIFICATIONS
    Frequency Response 250Hz - 12kHz
    Sensitivity 108dB
    Power Rating 60 Watts Cont.
    Width with Horn 16.5" (41.9 cm)
    Shipping Weight 17.44 lbs (7.91 kgs)

    SUPPORT FILES
    Installation Sheet

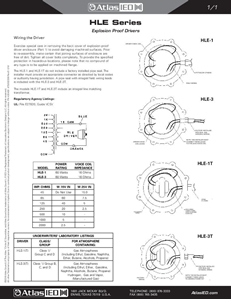

    HLE Install Sheet (1 page)
    Data Sheet
    MLE Series Datasheet (2 pages)
    Data Sheet
    HLE/MLE Series Datasheet (2 pages)
    CAD Drawing
    HLE-3T
