UL Listed 60-Watt, 16 Ohm Explosion-Proof Driver for Use in Hydrogen Environments

HLE-3
Availability: In stock
MSRP (USD): $633.99
  • Horn Sold Separately
  • UL Listed
  • 70V100VCAPABLE
  • IP56
    DESCRIPTION

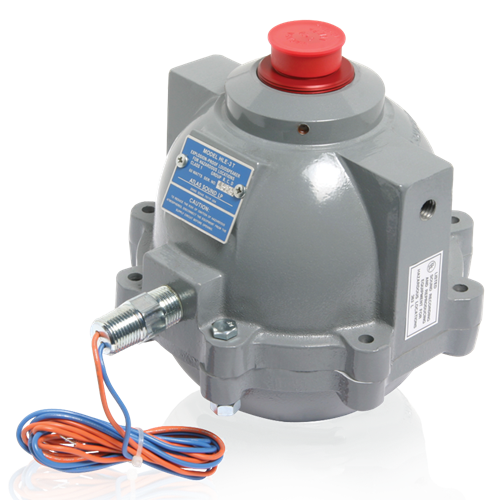

    Model HLE-3 is an explosion-proof compression driver engineered for high-efficiency voice and electronic signal communication in hazardous areas. The driver is protected within a rugged die-cast aluminum housing equipped with a pipe seal with integral field wiring leads, and an adjustable mounting bracket.

    Optional projector horns are available in two styles to meet dispersion requirements. Model HLE_MLE-30 is a high-quality, polycarbonate projector that creates a 120 ° x 60 ° pattern for wide area coverage. Model HLE_MLE-32 is a spun aluminum bell providing a 95 ° circular distribution emphasis.

    **ONLY The HLE_MLE-30 and the HLE_MLE-32 Horns are UL Listed for use with the HLE or MLE Line of Explosion Proof Drivers **


    Features
    • 60 Watt, 16 Ohm High-Intelligibility Driver in Cast Aluminum Housing
    • Approved for Class 1/Groups B, C & D Environments
    • Can be Used with Either HLE/MLE-30 OR HLE/MLE-32 Horn Projectors
    • Explosion-Proof Loudspeaker Driver for Signal and Communications Systems
    • Listed by UL for Use in Hazardous/Combustible Environments (Noted Models)
    • UL Certified, Safety Listed to UL1203

    SPECIFICATIONS
    Frequency Response 250Hz - 12kHz
    Sensitivity 108dB W/HLE_MLE-30 Horn & 111dB W/HLE_MLE-32 Horn
    Power Tap 16 Ohm
    Power Rating 60 Watts Cont.
    Mounts Horn HLE_MLE-30, HLE_MLE-32 (See horn spec. for final product dimensions and dispersion)
    Warranty Period 60 months from date of purchase
