UL Listed Explosion-Proof Driver with 60-Watt 70V Transformer

HLE-1T
Availability: In stock
MSRP (USD): $616.99
  • Horn Sold Separately
  • UL Listed
  • 70V100VCAPABLE
  • IP56
    DESCRIPTION

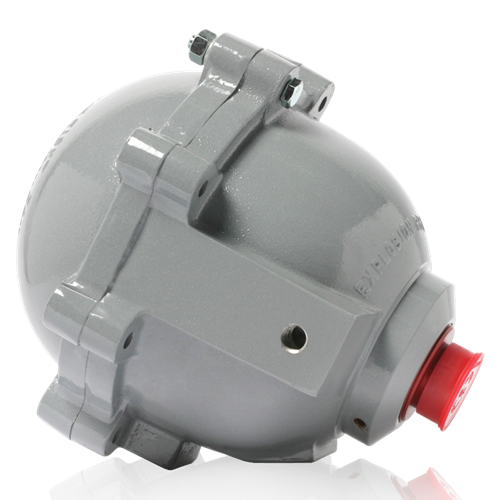

    HLE-1T speaker is an explosion-proof compression driver engineered for high-efficiency voice and electronic signal communication in hazardous areas. The driver is protected within a rugged die-cast aluminum housing, and have 60-watt power handling. Includes a factory-installed, internally mounted transformer (Note: To meet UL requirements transformer must be factory installed). Model is equipped with 1/2" conduit access and an adjustable mounting bracket.

    Optional projector horns are available in two styles to meet dispersion requirements. Model HLE_MLE-30 is a high-quality, polycarbonate projector that creates a 120 ° x 60 ° pattern for wide area coverage. Model HLE_MLE-32 is a spun aluminum bell providing a 95 ° circular distribution emphasis.

    **ONLY The HLE/MLE-30 and the HLE/MLE-32 Horns are UL Listed for use with the HLE or MLE Line of Explosion Proof Drivers **


    Features
    • 60 Watt, 70.7V Transformer High-Intelligibility Driver in Cast Aluminum Housing
    • Approved for Class 1/Groups C & D Environments
    • Can be Used with Either HLE/MLE-30 OR HLE/MLE-32 Horn Projectors
    • Explosion-Proof Loudspeaker Driver for Signal and Communications Systems
    • Listed by UL for Use in Hazardous/Combustible Environments (Noted Models)
    • UL Certified, Safety Listed to UL1203

    SPECIFICATIONS
    Frequency Response 250Hz - 12kHz
    Sensitivity 109dB W/HLE_MLE-30 Horn & 112dB W/HLE_MLE-32 Horn
    Power Taps 2.5, 5, 10, 20, 40, 60W @ 70.7V
    Power Rating 60 Watts Cont.
    Mounts Horn HLE_MLE-30, HLE_MLE-32 (See horn spec. for final product dimensions and dispersion)
    Warranty Period 60 months from date of purchase

    SUPPORT FILES
    MLE Series Datasheet (3 pages) MLE Series Datasheet (3 pages)
    HLE Install Sheet (1 page) HLE Install Sheet (1 page)
    HLE/MLE-1(T) UL1203 Certificate of Compliance (1 page) HLE/MLE-1(T) UL1203 Certificate of Compliance (1 page)
