8" In-Ceiling Loudspeaker with 4-Watt 25V/70V Transformer and 62-8 Baffle That Meets Buy America Requirements

  • ETL
  • 25V/70V Operation
  • TAA
  • BAA

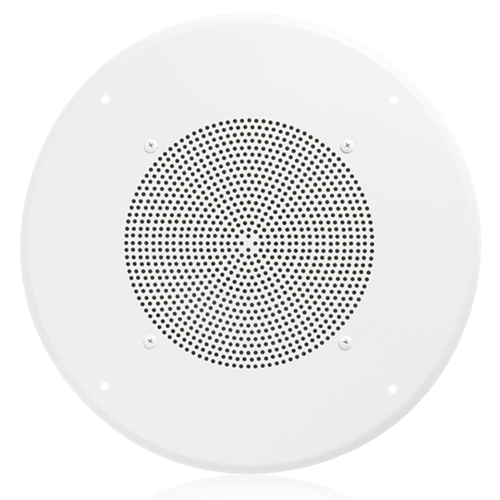

    Model HD72W-USA is a cost effective assembly that include high-quality 8" loudspeaker, 70.7V/25V transformer and screw type grill. Unit is shipped assembled, ready for installation and is BAA compliant.

    The HD72W-USA features a conventional cone design loudspeaker with a 1" diameter voice coil to reproduce voice and music with excellent response and superb overall performance.

    The HD72W-USA includes a factory mounted dual voltage transformer that exhibits less than 1.5dB of insertion loss and a frequency response of +1.5dB from 100Hz - 10kHz. Loudspeaker / transformer is factory installed on a 62-8 style baffle.

    Buy America Act Compliant
    Attractive White Finish
    Easy to Order Speaker/Transformer/Grill Assembly
    Suited for Any Commercial Paging or BGM Application
    Tech Specs
    Speaker Type Treated Paper
    Sensitivity 97dB Peak, 94dB Average
    Frequency Response 100Hz - 10kHz
    Power Taps .25, .5, 1, 2, & 4 Watts
    Dispersion 105°
    Depth 2 7/8" (7.3025 cm)
    Diameter 8" (20.32 cm)
    Shipping Weight 4.50 lbs (2.04 kgs)
    Safety Listed 1480, 2043
    Support Files

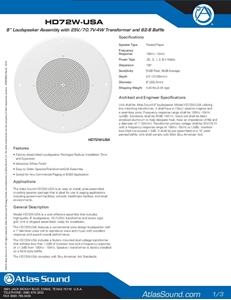

    Data Sheet FD_HD_Datasheet (2 pages) View | Download
    Data Sheet ATS005032 HD72W-USA Datasheet (3 pages) View | Download
