All Weather Outdoor Landscape Loudspeaker with Tall Base and 32-Watt 70V Transformer

GST-G
  • IP55
  • 4OHM8OHMCAPABLE
  • Non-Powered
  • 70V100VCAPABLE

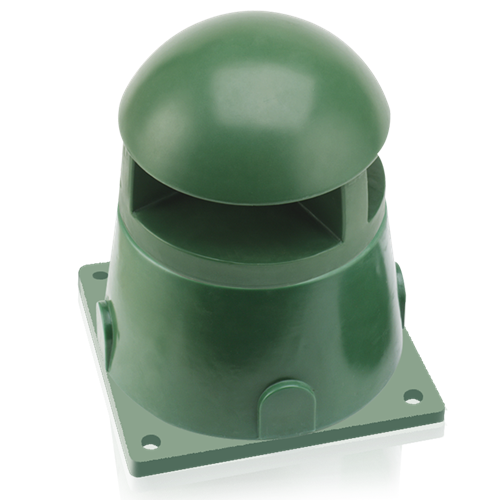

    The AtlasIED GST-G garden loudspeaker, designed for theme parks, hotels, or any architecturally landscaped area, simplify installation and deliver deep, rich sound. The loudspeaker is a coaxial 8", polypropylene/kevlar cone with rubber surround, 1.5" voice coil, 21 oz. magnet and a 1/2" mylar dome tweeter.

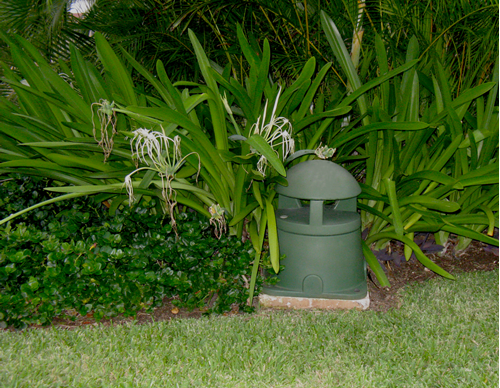

    The AtlasIED GST-G is designed to blend into any environment. This model includes a deep base for in-landscape burial. The two-piece design allows for a two-phase installation. In phase one, the base is installed. Phase two, after initial construction is done, the system contractor can return to install the loudspeaker/transformer.

    This multiple step process protects the loudspeakers from being damaged during the construction/landscaping process and also eliminates the potential for theft from the construction site.

    The GST-G Garden Loudspeaker base even has a protective cover to keep debris out during construction. Inside the enclosure is a durable 8" coaxial loudspeaker with a great sounding 360-degree horizontal dispersion pattern.

    The enclosure is made of stable polyethylene, which ensures performance in even the most temperamental and unpredictable climates.

    Each component can also be ordered separatly:

             GSH-G Head Unit

             GSBT-G Tall Base

             GSBS-G Short Base

    FEATURES
    Available in a Green Finish
    Convenient, Externally Adjustable 8, 16, and 32 Watt Taps in 70.7V Configuration with 8Ω Bypass Mode
    Deep Base for Landscape Installations
    Revolutionary two-piece design allows for two-phase installation
    SPECIFICATIONS
    Frequency Response 43Hz - 20kHz
    Sensitivity 83.5dB 1W/1m (Half Space Ref)
    Power Taps 8, 16 & 32 with 8Ω Bypass
    Speaker Type Inground
    Dispersion 360°H x 50°V
    SUPPORT FILES
    Data Sheet ATS001386E_GSS-G-GST-G_Garden_Speaker_Data_Sheet (2 pages) View | Download

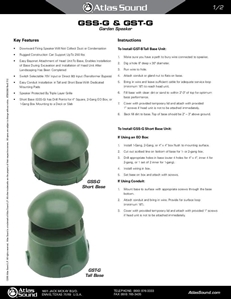

    Installation Sheet Garden Speaker Install Sheet (2 pages) View | Download
    CAD Drawing ATS183GL CAD File Download
