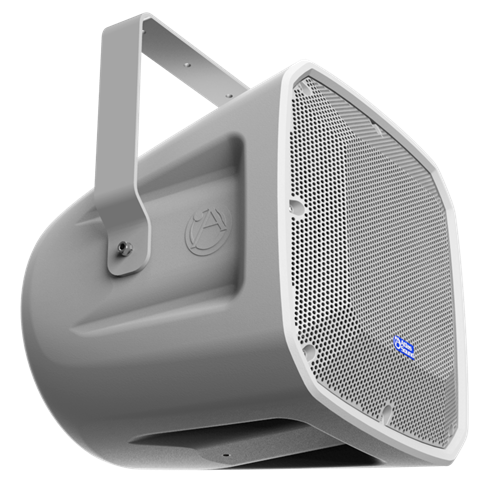

12" Multipurpose Low Frequency Horn Loudspeaker System

FS12T-SUB
  • IP45
  • 4OHM8OHMCAPABLE
  • 70V100VCAPABLE
  • Non-Powered

    The FS12T-SUB is a low-frequency loudspeaker system engineered to provide extended bass response in applications requiring weather resistance. It was designed to withstand exposure to environmental conditions and provide long-lasting reliability.

    It incorporates a 12" LF driver and tuned for optimal source reproduction.

    The unit is constructed using molded linear low-density polyethylene (LLDPE), creating an incredibly strong yet lightweight enclosure. The unit includes a stainless steel U-bracket and fly-points allowing for easy mounting. Input is via an integrated 70.7V transformer with low insertion loss and full frequency response with power taps up to 400-watts including an 4Ω bypass. The transformer is discretely mounted under the rear cover for weather protection. The finish is neutral “battle ship grey” that is UV resistant and allows for years of durability.

    Learn more about the importance of protecting paging horns from low frequency damage and view the TSD-HF11 unit designed specifically to protect horns from low frequency damage.

    FEATURES
    All-Weather Construction Ensures Long-Term Reliability Through Varying Seasons
    400 Watts Power Handling

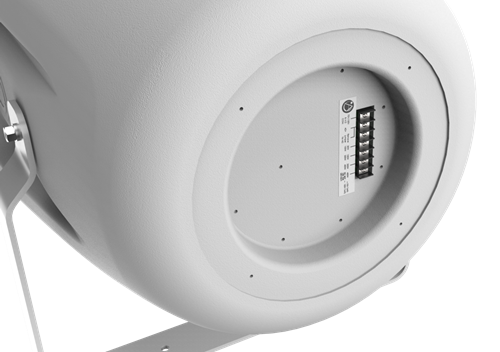

    Easy, Weather Resistant Connection via a Convenient Recessed Terminal Block Located on the Back of the Loudspeaker
    Includes a Built-In, High Efficiency 400 Watt 70.7V Transformer
    Four Eyebolt Inserts for Multiple Mounting Capabilities

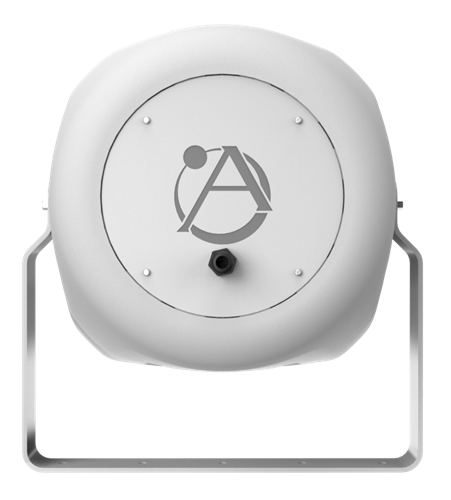

    Heavy Duty Mounting Bracket (Included) Allows for Easy Installation to Most Any Flat Surface
    Easy Service Design Allows Transducers to be Serviced in the Field without Uninstalling the Enclosure from the Mount
    SPECIFICATIONS
    Power Taps 400, 200, 100, 50 Watts & 4Ω bypass
    Sensitivity 98dB SPL
    Frequency Response 47.5Hz - 130Hz
    Driver Type 12" LF
    Environment IP45
    MAX SPL 124dB SPL
    Height 19.56" (49.78 cm)
    Depth 18.5" (46.9 cm)
    Width 18.5"(46.9 cm)
    Weight 41.00 lbs (18.6 kgs)
    Color Pantone 423 C - RAL 7045
    SUPPORT FILES
    Data Sheet FS12T-SUB Datasheet (5 pages) View | Download
    CAD Drawing FS Series CAD File Download
    Revit Drawing FS12T-SUB Revit Drawing Download
