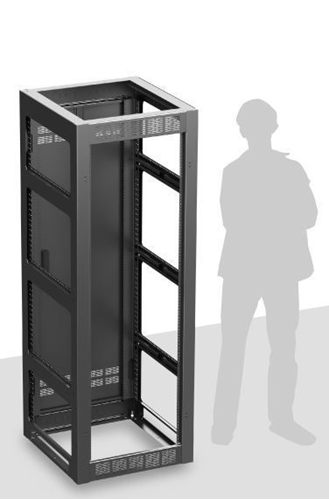

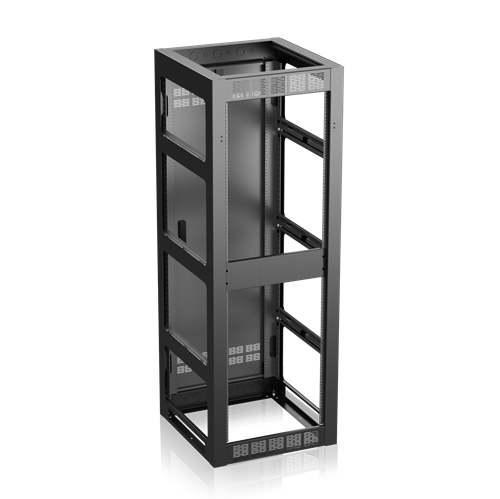

Gangable Rack 25.5 inch Deep, 35RU **Shown with Optional Side Panels & Front Door**

FMA35-25G
  • UL Listed
  • TAA
  • BAA

    The AtlasIED FMA35-25G (gangable) was designed with contractor input to meet storage and wire management needs for today and into the future. The unit features increased width for better wire management, and includes rear door. Construction for tops/bottoms/frames is 14-gauge steel. Hat sections provide rail slots and retainer holes for extra strength and two pairs of 12-gauge CRS adjustable mounting rails plated, drilled and tapped 10-32 with hash marks to indicate rack unit increments are included. Holes for optional surface doors are pre-drilled with threaded inserts factory installed to allow doors to be mounted after equipment is loaded. Hat sections are sized to facilitate standard 19" panels -handy for mounting "stick-on" modules and other hardware. Knock outs are provided on removable standard 2U panels (rear of cabinet top & bottom). These panels includes 3/8" KOs for BNC connectors (perfect for diversity wireless systems).


    A 10 RU open area space is provided on top sections to allow use AtlasIED fan panels or 5000 series top panels. Finish is scratch resistant textured black epoxy. Innovative swing out side panels (FMA35-25LRPV) are available for securing end racks in ganging applications. Plexiglass, perforated steel, and solid front doors are optional.

    Features
    14-Gauge Tops/Bottoms
    16-Gauge "Swing-Out" Side Panels
    Hat Sections Accommodate Atlas "Channel Net" Installation of Lacing Bars, Power Strips or Bus Bars
    Hat Sections are Completely Re-Designed with Rail Slot and Retainer "Hole" for Extra Strength
    Hat Sections Sized to Facilitate Standard 19" Panels - Handy for Mounting "Stick-On" Modules and Other Hardware
    Includes Two Pairs of Plated 12-Gauge Mounting Rails Tapped 10-32 that Include RU Indicator Markings
    Increased Vent Space on Extra Spare Top Sections - Use Atlas Fan Panels or 5000 Series Top Panels
    Knock Outs on Removable Standard 2U Panels (Rear of Cabinet Top & Bottom Panel Includes 3/8" Knock Outs for BNC Connectors (Perfect for Diversity Wireless Systems)
    Leg Levelers Included
    Return Added for "Stop" When Flush Mount Doors are Utilized
    Slots also Maintained in Hat Sections for Wire Management
    Slots in Rack Rails for Cable Pass-Through and Front Door Hinge Access (SM Doors)
    UL1678 Listed
    Tech Specs
    Rack Units 35
    Height 68 13/16" (174.78 cm)
    Width 24 1/16" (61.12 cm)
    Depth 25 1/2" (64.77 cm)
    Usable Depth 24 1/4" (61.57 cm)
    Shipping Weight 170.00 lbs (77.11 kgs)
    Safety Listed 1678
    Support Files
    Data Sheet FMAXXX-G Series Racks Data Sheet (4 pages) View | Download
    CAD Drawing FMA35-25G Download
    Installation Sheet ATS004356_FMARTK_Install_Sheet (1 page) View | Download
    A & E Specifications All Racks AE Specs Only Download
