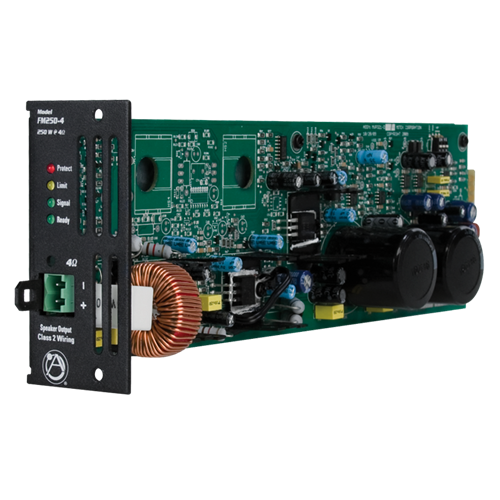

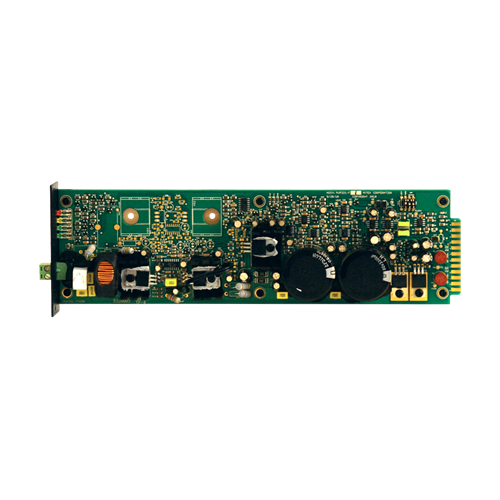

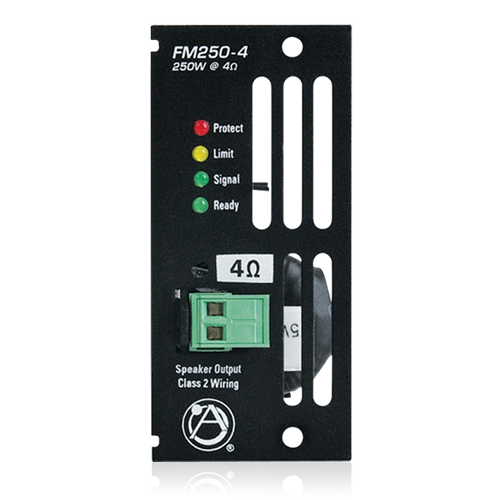

4Ω/8Ω Amplifier Card Module for Use with F6-MF

Name: 250W Amplifier Card Module For Use with F6-MF
Brand: AtlasIED
SKU: FM250-4
Rating: 5 (5 reviews)

FM250-4

Availability: In stock

Your Price:

$291.99

DESCRIPTION

This amplifier card module is designed to be used with the F6-MF in any configuration from one module to six modules. Each module has 250W of output power and each features a defeatable limiter and high pass filter.

The F6 FM250 series power modules are designed to be 90% efficient allowing the amplifier to run cooler and consume less energy than conventional commercial amplifiers.

Features

Fixed 30Hz High Pass Filter
Selectable Input Sensitivity per Channel, 1V or 2V
30dB per Channel Voltage Gain
Balanced 20k Input Impedance

SPECIFICATIONS

2 Channels	140W Each
6 Channels	125W Each
1 Channel	300W
2 Channels	280W Each
6 Channels	250W Each
1 Channel	135W
6 Channels	95W Each
1 Channel	270W
6 Channels	170W Each
Frequency Response	30Hz - 20kHz
Signal to Noise Ratio	-90dB Below Rated Output
Height	3.4" (86mm)
Width	1.5" (38mm)
Depth	10.4" (264mm)
Weight	0.8 lbs. (0.36kg)
Warranty Period	36 months from date of purchase
