8" In-Ceiling Speaker with 4-Watt 25V/70V Transformer and M222W Baffle

Name: Discontinued Obsolete SKU
Brand: AtlasIED
SKU: FD72M222W
Rating: 5 (5 reviews)

FD72M222W

DESCRIPTION

Model FD72M222W is a cost effective assembly that include high-quality 8" speaker, 70.7V transformer and screw type grill.

The FD72M222W features a conventional cone design speaker with a 1" diameter voice coil to reproduce voice and music with excellent response and superb overall performance.

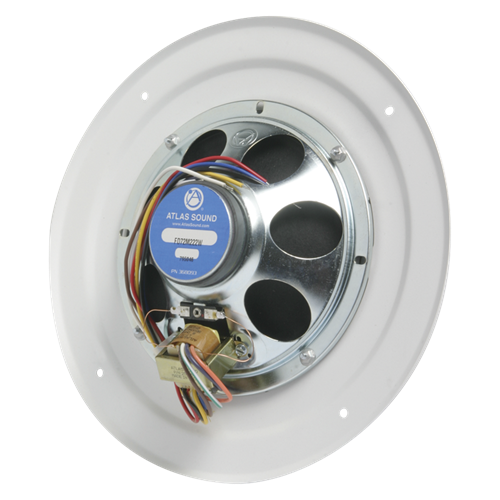

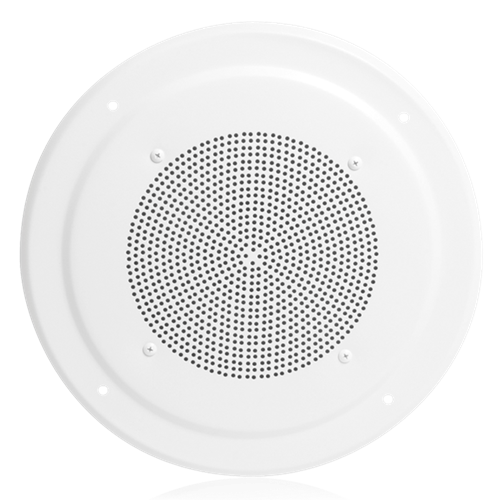

Speaker / transformer is factory installed on a M222W baffle featuring a contoured trim ring. Construction is of one-piece .030 aluminum. Finish is textured white.

Features

Aluminum Contoured Baffle
Attractive White Finish
Easy to Order Speaker/Transformer/Grill Assembly
Mounts to Standard Tile Bridges, Enclosures, and Plaster Rings
Suited for Any Commercial Paging or BGM Application

SPECIFICATIONS

Speaker Type	Treated Paper
Sensitivity	97dB Peak, 94dB Average
Frequency Response	50Hz - 18kHz
Power Taps	.25, .5, 1, 2, & 4 Watts
Dispersion	105°
Depth	2 5/8" (6.6675 cm)
Diameter	8" (20.32 cm)
Shipping Weight	3.17 lbs (1.44 kgs)
Warranty Period	60 months from date of purchase

SUPPORT FILES

FD/EZFD & HD/EZHD Series Datasheet (2 pages)

View | Download
