Fire Rated 4" Standard Speaker with 4-Watt 25V/70V Transformer, Enclosure, and Baffle

FC104T72FRK
Availability: Call Us for Product Availability
Your price (USD): $204.99/each
Must purchase in multiples of 6
  • UL Listed
  • BAA
  • 70V100VCAPABLE
  • TAA
    DESCRIPTION

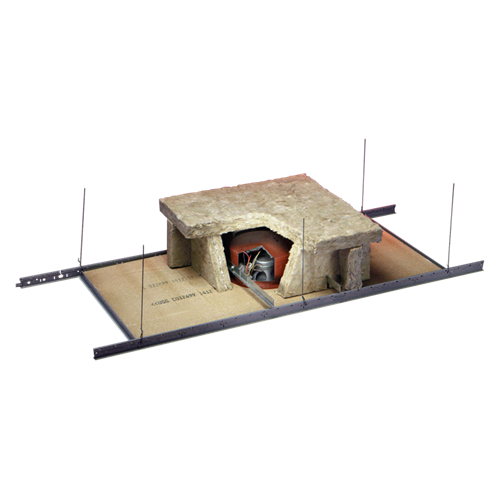

    FC104T72FRK is UL classified for fire-resistance in the United States and Canada. The FC104T72FRK has passed a fire-rating up to three hours (rating varies by ceiling construction), and has been tested in accordance with the UL standard – Fire Test of Building Construction and Materials, ANSI/UL263 (ASTM E119, NFPA 251). The FC104T72FRK is pre-manufactured and assembles quickly on-site with no special tools or skills. The assembly includes an enclosure-fiber kit, UL listed speaker/transformer assembly, and choice of UL Listed baffle. Each enclosure-fiber kit includes pre-cut fiber panels, metal enclosure, rail set, and hardware. Atlas-Sound FR Series offers a wide variety of cost, performance, and aesthetic options. The 43 speaker/transformer combinations approved for use in FR assemblies are FR versions of the industry standard Atlas-Sound Strategy Series FA134, FA136, FA138 models and the C803A, C5A, C10A, and FC104 speakers. The approved baffles are also FR versions of familiar Atlas-Sound models. To maintain UL Classification for fire-resistance, enclosure-fiber kits must be used with FR Series components.


    FEATURES
    • Efficient Wide-Range Frequency Response
    • Ideal for Public Address and Background Music Installations
    • Includes 4 Watt 70-Volt Transformer
    • Industry Standard, 10-Watt, 4" High-Compliance Loudspeaker
    • Kit Includes Speaker/Transformer, Baffle, and Fiber Enclosure Kit
    • Mounts a Large Selection of Atlas Sound 4" Grilles
    • NFPA251 Compliant
    • Offers Proven Performance with Wide-Angle Sound Dispersion
    • Tested to ANSI Standard E119
    • UL Classified Under Standard UL263
    • UL1480 Listed for General Signaling

    SPECIFICATIONS
    Height 10 3/4" (27.305 cm)
    Width 24" (60.96 cm)
    Included Baffle 51-4FR
    Included Speaker 96-4FR
    Included Enclosure FC104T72FR
    Safety Listed ANSI / UL 263 (ASTM E119, NFPA 251)

    SUPPORT FILES
    Data Sheet
    ATS004121 FR Series Datasheet RevA
    EASE File
    FC104 EASE DATA
