EN54-24 certified 6" Coaxial In-Ceiling Speaker with 32-Watt 70/100V Transformer and Ported Enclosure

FAP62TEN
  • EN54-24 Certified
  • CE
  • 70V / 100V Operation
  • HYFIDROPHOBIC_OPTIONAL
  • Non-Powered
  • Paintable
  • 8Ω Operation
    DESCRIPTION

    The EN54-24 certified FAP62TEN's 110° dispersion angle can reduce the number of loudspeakers necessary to achieve coverage in distributed systems with low ceilings.

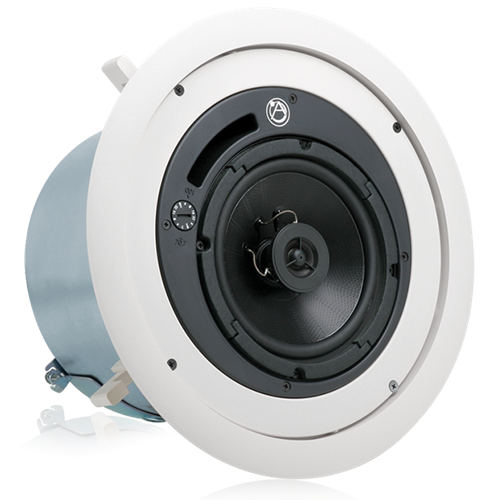

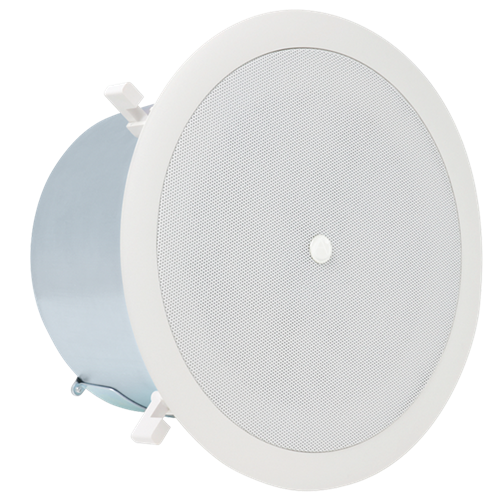

    The loudspeaker component matches the performance of the legendary AtlasIED FA136 driver. High quality construction 6" coaxial cone type driver includes a 1" voice coil and polypropylene cone with a butyl rubber surround. The 19mm coaxially mounted tweeter is constructed of PEI. A high sensitivity of 88dB average (92dB peak) means less power may be required to achieve the desired SPL. This loudspeaker is factory assembled in an optimally tuned and ported deep drawn enclosure and includes a specially designed 32 watt low saturation 70.7V / 100V transformer. A convenient front mounted selector switch allows tap selection without the need to remove the speaker from the ceiling. This switch also includes a transformer bypass setting for 8Ω direct coupled operation.


    Features
    • 4 Pole Detachable "Phoenix" Style Connector Allows Easy Pre-Wiring and is Convenient for Daisy Chaining Additional Strategy Full Range Speakers or Subwoofers
    • Easy Installation in Drop Tile or Sheetrock Ceilings via C-ring/V-rail Tile Bridge and "Dog Leg" Mounting System (Included)
    • Enhanced Quality 70.7V/100V Internal Transformers Minimize Insertion Loss and Maintain Low Frequency Response While Providing increased Output for Higher SPL Applications
    • Extended Low Frequency Response from the 285 Cubic Inch Optimally Tuned and Ported Deep Drawn Galvanized Steel Enclosure
    • Front Mounted Tap Selector Switch for Easy System Tuning Adjustments Includes Transformer Bypass Setting for 8 ohm Direct Coupled Operation
    • "Press Fit" Grilles Blend Better into Contemporary Architecture
    • Unique "Trap Door" Input Section Allows for Through Conduit Runs with Rigid or Flex Conduit
    • EN54-24 Certified
    • ISO 7240-24 Certified
    • Ingress Protection (EN54-24): IP21C

    SPECIFICATIONS
    Speaker Type Coaxial
    Sensitivity (1W/1m): 88dB
    Sensitivity (EN54-24) (1W/4m): 74dB
    Power Taps 2, 4, 8, 16, 32 Watts & 8Ω
    Frequency Response 83Hz - 20kHz (±5dB)
    Dispersion 110°
    Depth 8.66" (220mm)
    Diameter 12.40" (315mm)
    Cut Out Diameter 11" (279mm)
    Shipping Weight 14.9 lbs (6.759 kgs)
    Warranty Period 60 months from date of purchase
