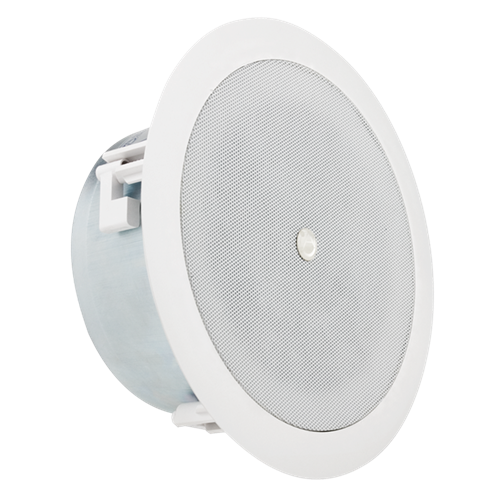

4 inch Coaxial Speaker System with 70.7V/100V-16W Transformer and 8Ω Bypass - Shallow Mounting Depth

FAP42TC-UL2043
  • UL Listed
  • HYFIDROPHOBIC_OPTIONAL
  • AMATHOPHOBIC_OPTIONAL
  • CE
  • Non-Powered
  • Paintable
  • 8Ω Operation
  • 70V / 100V Operation

    The FAP42TC-UL2043 from AtlasIED meets the requirements of UL 2043 for loudspeakers used in air handling (true plenum) spaces. With an overall depth of 4" (102mm) the FAP42TC-UL2043 is the perfect choice when high fidelity audio and wide, even coverage is required but space above the plenum is limited. For wall mount applications (tanning salons or surround sound) the short 4" depth will even work in most stud wall installations.


    A simplified input section features a 4-pole Phoenix style connector for easy daisy chaining between loudspeakers. A simple cover including combination 1/2" (13mm) / 3/4" (19mm) knock-outs is provided for installation ease. The popular AtlasIED "C-ring / V-Rail" mounting system is provided for quick installation into drop tile acoustic ceilings and existing construction drywall. For new construction drywall applications the optional FAP42-TR may be used.

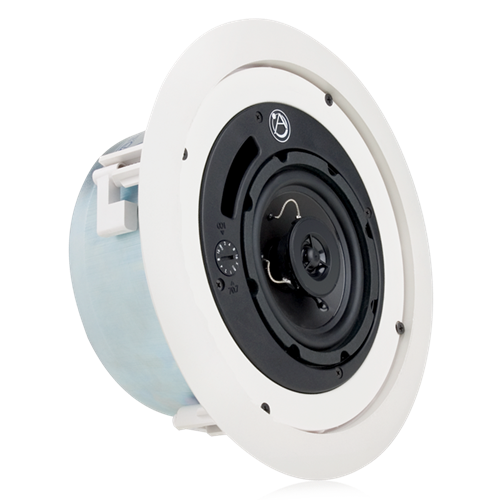

    All other popular features of the FAP42T are included on the new FAP42TC-UL2043 including the front mounted tap selector switch (with included transformer bypass for 8 Ohm applications), attractive press-fit grills, high performance 4" polypropylene cone driver with 3/4" (19mm) PEI tweeter and precision crossover components for smooth, even coverage.

    Features

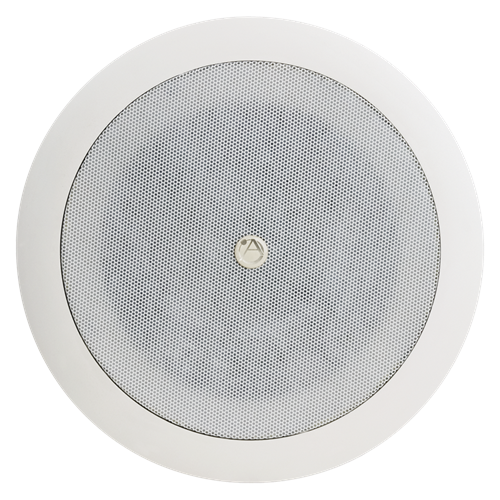

    "Press Fit" Grilles Blend Better into Contemporary Architecture

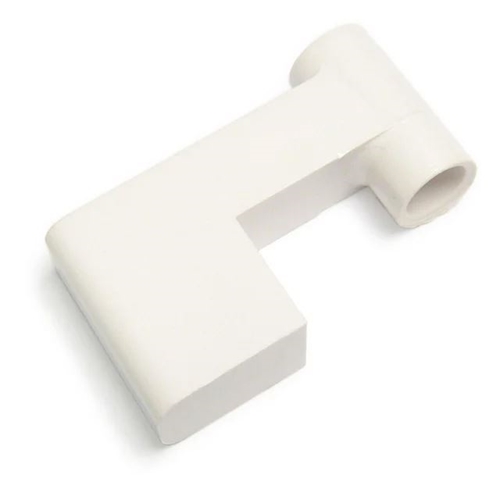

    Easy Installation in Drop Tile or Sheetrock Ceilings via C-ring/V-rail Tile Bridge and "Dog Leg" Mounting System (Included)
    Enhanced Quality 70.7V/100V Internal Transformers Minimize Insertion Loss and Maintain Low Frequency Response While Providing increased Output for Higher SPL Applications

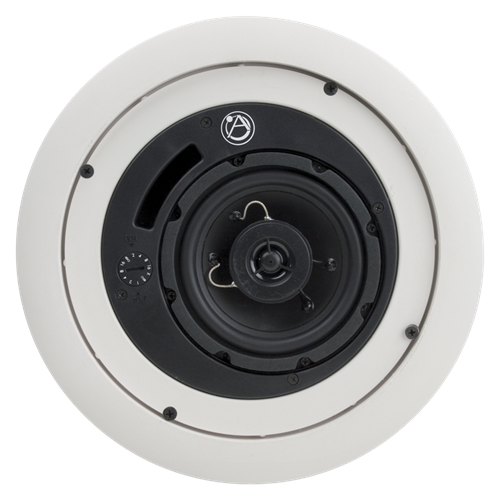

    Front Mounted Tap Selector Switch for Easy System Tuning Adjustments Includes Transformer Bypass Setting for 8 ohm Direct Coupled Operation
    Low Depth (4") Speaker System for Limited Space Applications
    UL1480 / UL2043
    Tech Specs
    Speaker Type Coaxial
    Sensitivity 88dB Average
    Frequency Response 75Hz - 20kHz
    Dispersion 130°
    Diameter 10 1/2" (26.67 cm)
    Shipping Weight 13.00 lbs (5.90 kgs)
    Certified to Safety Listing UL 1480 & UL 2043
    Support Files

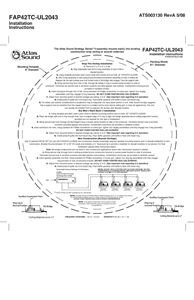

    Installation Sheet INPPFAP42TC (1 page) View | Download

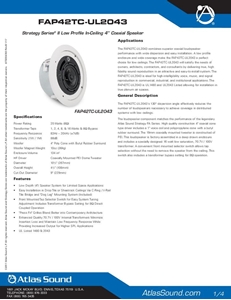

    Data Sheet ATS004743 FAP42TC-UL2043 Data Sheet (4 pages) View | Download
