Pre-Assembled Strategy Series 6" System Package

FAP136T87-720
  • UL Listed
  • HYFIDROPHOBIC_OPTIONAL
  • AMATHOPHOBIC_OPTIONAL
  • CE
  • Non-Powered
  • Paintable
  • 8Ω Operation
  • 70V / 100V Operation
    DESCRIPTION

    The FAP136T87-720 Strategy Series speaker package includes premium- quality, state-of-the-art 6" Stragegy products, in a simple to order, simple to install package.

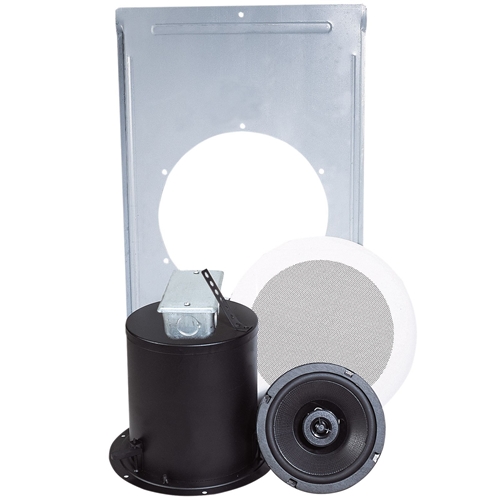

    The speaker and back can come pre-assembled. Each package contains (2) FA81-6 tile bridges, (2) attractive FA720-6 grilles and (2) speaker/can assemblies (FA136T87 & FA97-6).

    The internal speaker includes a factory mounted, highly efficient, HT87 8 watt transformer that is pre-wired and terminated to a BX box on top of the FA97-6 enclosure.


    FEATURES
    • Labor savings with preassembled package
    • Priced as each, sold in pairs
    • UL1480 and UL2043 listed for General Signaling and Plenum Ceilings

    SPECIFICATIONS
    Frequency Response 80 Hz- 20 kHz (+5dB)
    Sensitivity 88dB Average, 91dB Peak
    Power Taps 1, 2, 4, 8
    Speaker Type Coaxial
    Dispersion 130°
    Depth 7 5/8" (19.3675 cm)
    Diameter 7" (17.78 cm)
    Shipping Weight 12.00 lbs (5.44 kgs)
