Recess Enclosure w Dog Legs for 8" Strategy XDeep

FA97-8
Availability: Temporarily Out of Stock - Product will ship once in stock.
Your price (USD): $53.99
  • CUL
  • Made in USA
  • TAA
  • BAA
    DESCRIPTION

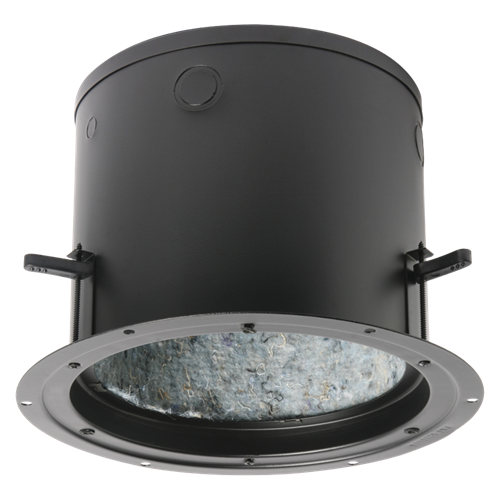

    Model FA97-8 installs quickly and easily in plaster, drywall, or suspended tile ceilings up to 2 3/8" thick utilizing three, easy-to-adjust rotating clamps that rotate and secure into position with a screwdriver.

    The enclosure front-loads AtlasIED's Strategy Series 8" dia. speaker Models FA138 and FA118. This direct speaker to enclosure mounting method removes all load-bearing requirements from the grille, allowing the use of welded studs for convenient, push-on grille installation — a time-saving feature which presents a clean and hardware-free appearance. It also facilitates fast and easy grille removal for painting or other maintenance.

    FA97-8 Enclosure allow the high-performance coaxial FA138 and FA118 speaker to achieve maximum potential.

    This high-quality speaker/enclosure combination is perfect for applications where high-fidelity music and intelligible speech are imperative.

    FEATURES
    • Acoustically Treated Enclosure for Strategy I Speakers
    • Flip Tab Dog Ears Allow for Installation in Ceilings Up to 2 3/8" Thick
    • Recessed Lip in Opening Mounts Speaker Directly to Enclosure to Provide a Sealed System
    • Speaker Mounted to Enclosure Frees Grill from Any Load Bearing Requirements so Push-Mount Style Grills can be Used
    • Tubular Spring Clips on Flanged Face Accept Ribbed Weld Studs on Strategy I Grills
    • UL1480 and UL2042 listed for Use in General Signaling and Plenum Ceilings

    SPECIFICATIONS
    Depth 7 5/8" (19.3675 cm)
    Diameter 8 1/2" (21.59 cm)
    Shipping Weight 4.17 lbs (1.89 kgs)
    Safety Listed 1480, 2043

    SUPPORT FILES
    SL1.1513
    Data Sheet
    ATS001387 8%22 Mounting System Accessories Datasheet RevE
    CAD Drawing
    FA97-8
