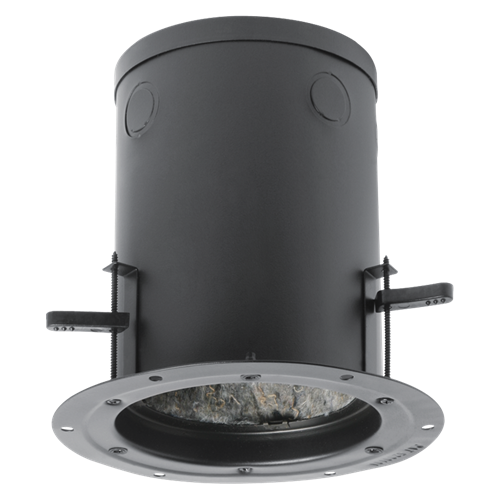

Recessed Enclosure w Dog Legs for 4" Strategy Extra Deep

FA97-4
  • UL Listed
  • CUL
  • TAA
  • BAA
    Model FA97-4 installs quickly and easily in plaster, drywall, or suspended tile ceilings up to 2 3/8" thick utilizing three, easy-to-adjust rotating clamps that rotate and secure into position with a screwdriver.

    The enclosure front-loads AtlasIED's 4" dia. Strategy Series loudspeaker Models FA134 and FA114. This direct loudspeaker to enclosure mounting method removes all load-bearing requirements from the grille, allowing the use of welded studs for convenient, push-on grille installation — a time-saving feature which presents a clean and hardware-free appearance. It also facilitates fast and easy grille removal for painting or other maintenance.

    This enclosure allows the high-performance coaxial FA134 and full-range FA114 loudspeakers to achieve maximum potential.

    This high-quality loudspeaker/enclosure combination is perfect for applications where high-fidelity music and intelligible speech are imperative.
    Features
    Acoustically Treated Enclosure for Strategy I Speakers
    Depth of Enclosure Allows for Extended Low Frequency Response
    Flip Tab Dog Ears Allow for Installation in Ceilings Up to 2 3/8" Thick
    Recessed Lip in Opening Mounts Speaker Directly to Enclosure to Provide a Sealed System
    Speaker Mounted to Enclosure Frees Grill from Any Load Bearing Requirements so Push-Mount Style Grills can be Used
    Tubular Spring Clips on Flanged Face Accept Ribbed Weld Studs on Strategy I Grills
    UL1480 and UL2042 listed for Use in General Signaling and Plenum Ceilings
    Tech Specs
    Depth 7 5/8" (19.3675 cm)
    Diameter 5 3/8" (13.6525 cm)
    Shipping Weight 2.67 lbs (1.21 kgs)
    Safety Listed 1480, 2043
