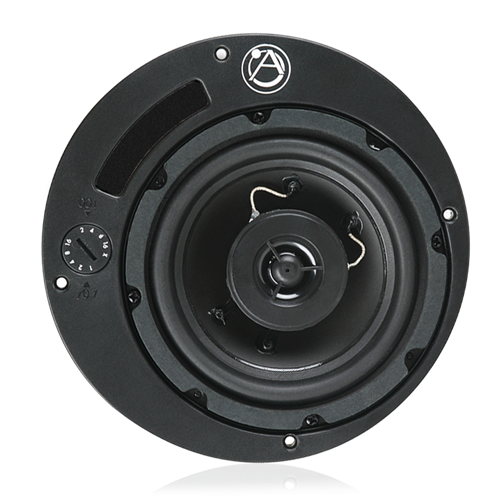

4" In-Ceiling Coaxial Speaker Motorboard Assembly with 16-Watt 70.7V/100V Transformer

FA42T-6MB
  • UL Listed
  • HYFIDROPHOBIC_OPTIONAL
  • AMATHOPHOBIC_OPTIONAL
  • 4OHM8OHMCAPABLE
  • 70V100VCAPABLE

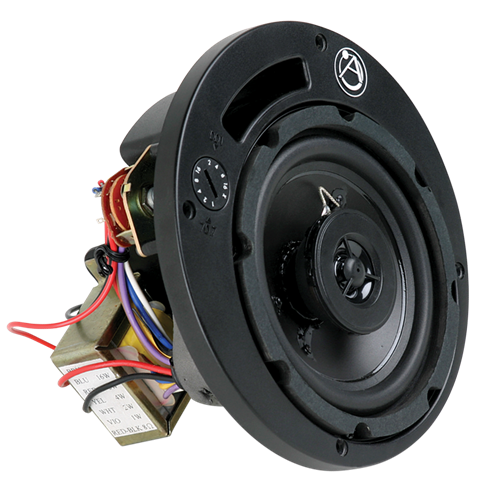

    Model FA42T-6MB is the entire 4" loudspeaker/ transformer/ selector switch/ front plate assembly found in the FAP42T assembly. The footprint of the FA42T-6MB is identical to a standard FA series 6" loudspeaker component. This footprint allows the motor board to fit into all original Strategy Series 6" enclosures in the exact same manner as a regular 6" FA loudspeaker (FA136Txx).

    FEATURES
    4" Speaker Installs into 6" Strategy Enclosure
    Designed for Division of Labor Installations When Enclosures Need to be Installed Before Speakers are Installed
    Enhanced Quality 70.7V/100V Internal Transformers Minimize Insertion Loss and Maintain Low Frequency Response While Providing increased Output for Higher SPL Applications
    Front Mounted Tap Selector Switch for Easy System Tuning Adjustments
    Motorboard Assembly has Same Footprint and Bolt-Hole Pattern as 6" Speaker
    Tuned Port Maximizes Low Frequency Response from FA97-6 & FA95-6 Enclosure
    UL1480 for General Signaling Listed file UEAY.S1824
    SPECIFICATIONS
    Speaker Type Coaxial
    Sensitivity 88dB Average
    Power Taps 1, 2, 4, 8, & 16 Watts
    Dispersion 130°
    Depth 5 1/2" (13.97 cm)
    Diameter 7" (17.78 cm)
    Shipping Weight 4.00 lbs (1.81 kgs)
    Certified to Safety Listing UL 1480
    SUPPORT FILES
    Data Sheet

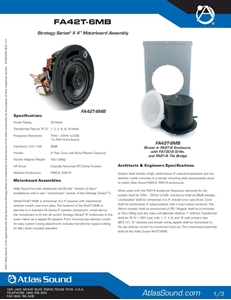

    ATS003237C FA42T-6MB Data Sheet (3 pages)
    Installation Sheet

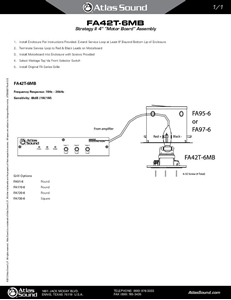

    ATS004351_FA42T-6MB_Install_Sheet (1 page)
    CAD Drawing
    FA42T-6MB CAD Drawing
