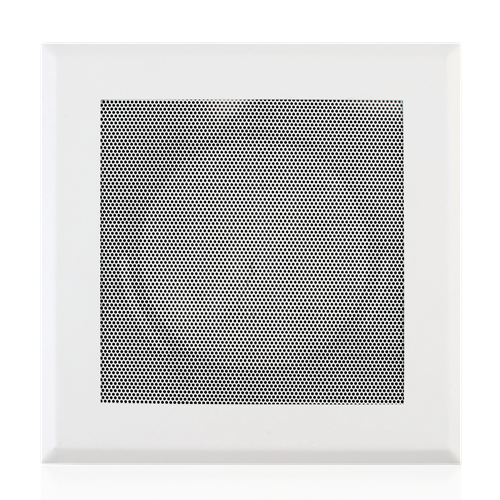

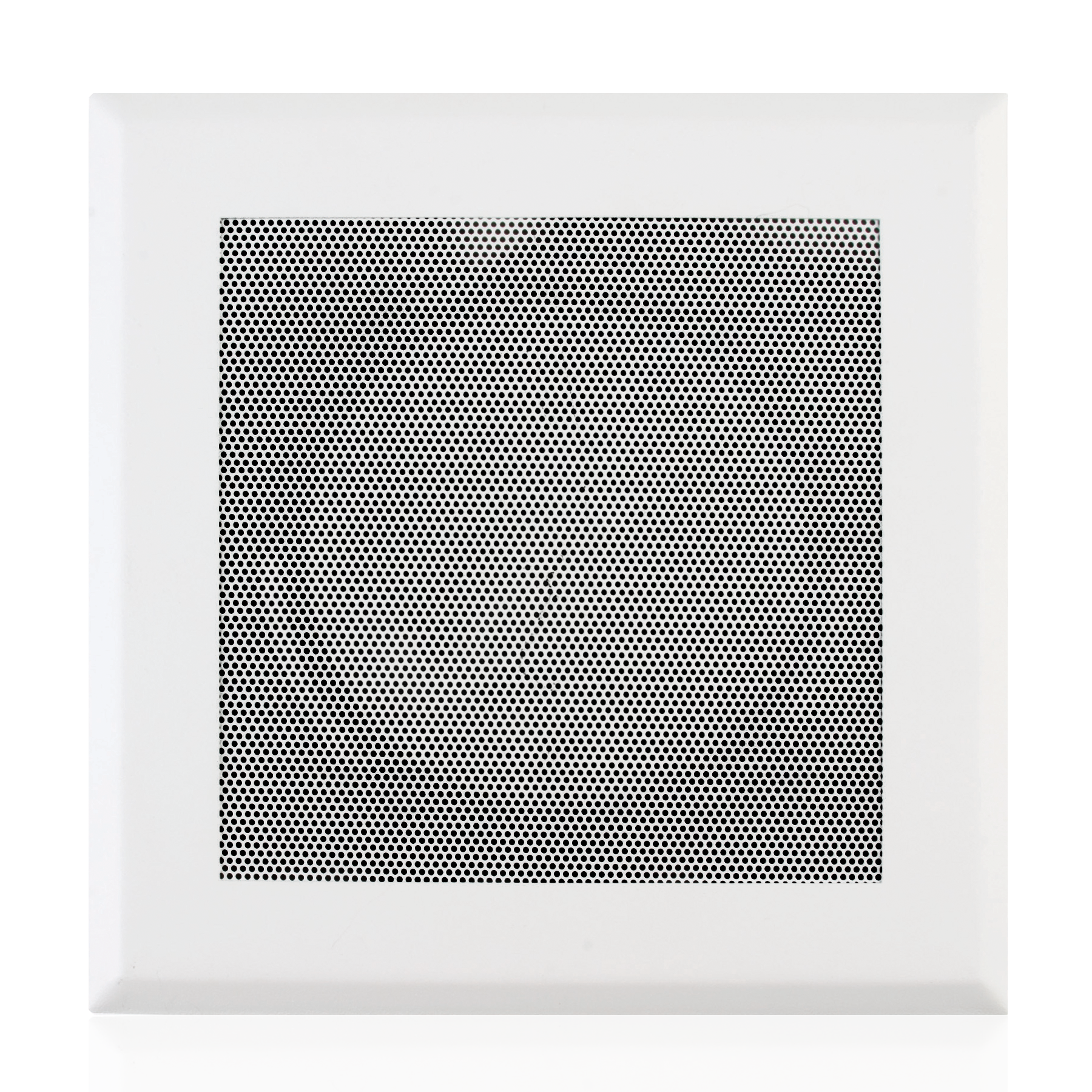

Square Grill for 8" Strategy Speakers

FA170-8

Availability: In stock
Your Price:
$77.99
  • CUL
  • BAA
  • TAA
  • HYFIDROPHOBIC_OPTIONAL
    DESCRIPTION

    Acoustically matched and treated backboxes allow Strategy Series speakers to perform with optimum resonance-free operation. Standard units include three, easy-toadjust clamps that rotate and secure with a screwdriver into ceilings up to 1 1/4" thick. They may also be installed by conventional screw mounting if desired. Models are offered in 4", 6" and 8" sizes in volume and economy versions. Volume Model Series FA97 and Economy Model Series FA95 are 22-gauge CRS, undercoated and equipped with four threaded speaker inserts and three grille-stud receptacles. Both are finished in black epoxy. FA97 Series is lined with 5/16" thick high-density acoustic batting for superior full-range music performance.


    Features
    • Designed to Work Only with Strategy I Enclosures and Plaster Rings
    • Equipped with Three Weld Studs that Allow Tool-Free Push-In Installation
    • Integrally Designed Sub-Plate with Slotted Cut Outs Allows the Grill to be Rotated in Line with the Ceiling Regardless of How the Enclosure is Mounted
    • No Exposed Hardware
    • Smooth Baked on, Two-Part, Hybrid Epoxy Finish
    • Square Grill Option for Strategy I Series Enclosures
    • UL1480 for General Signaling Listed file UEAY.S1824

    SPECIFICATIONS
    Height 11 1/4" (28.575 cm)
    Depth 5/16" (0.79502 cm)
    Shipping Weight 12.00 lbs (5.44 kgs)
    Safety Listed 1480
    Warranty Period 60 months from date of purchase

    SUPPORT FILES
    8 8" Mounting System Accessories Datasheet (4 pages)
