Square Grill for 4" Strategy Speakers

  • UL Listed
  • CUL
  • TAA
  • BAA

    Acoustically matched and treated backboxes allow Strategy Series loudspeakers to perform with optimum resonance-free operation. Standard units include three, easy-toadjust clamps that rotate and secure with a screwdriver into ceilings up to 1 1/4" thick. They may also be installed by conventional screw mounting if desired. Models are offered in 4", 6" and 8" sizes in volume and economy versions. Volume Model Series FA97 and Economy Model Series FA95 are 22-gauge CRS, undercoated and equipped with four threaded loudspeaker inserts and three grille-stud receptacles. Both are finished in black epoxy. FA97 Series is lined with 5/16" thick high-density acoustic batting for superior full-range music performance.

    Designed to Work Only with Strategy I Enclosures and Plaster Rings
    Equipped with Three Weld Studs that Allow Tool-Free Push-In Installation
    Integrally Designed Sub-Plate with Slotted Cut Outs Allows the Grill to be Rotated in Line with the Ceiling Regardless of How the Enclosure is Mounted
    No Exposed Hardware
    Smooth Baked on, Two-Part, Hybrid Epoxy Finish
    Square Grill Option for Strategy I Series Enclosures
    UL1480 for General Signaling Listed file UEAY.S1824
    Height 9 3/4" (24.765 cm)
    Depth 5/16" (0.79502 cm)
    Shipping Weight 8.00 lbs (3.63 kgs)
    Safety Listed 1480
    Data Sheet

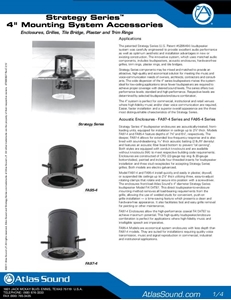

    ATS003027 4%22 Mounting System Datasheet RevC (4 pages)
