8" Coaxial Loudspeaker with 32-Watt 70.7V Transformer

FA138T327
  • 70V100VCAPABLE
  • HYFIDROPHOBIC_OPTIONAL
  • AMATHOPHOBIC_OPTIONAL

    Model FA138 is AtlasIED's premium 8" coaxial loudspeaker. This 32-watt unit includes a circuit board mounted high-pass/low-pass crossover which produces outstanding sound quality. It incorporates a tapered backplate for increased magnetic circuit efficiency and offers a frequency response of 75Hz - 20kHz. Model FA138 contains a Kevlar® fiber reinforced polypropylene cone woofer, a custom butyl rubber surround, a 1-1/2" vented Kapton voice coil, a 21oz. magnet and a 1.2" mylar dome ferro fluid tweeter for clean and powerful weather-resistant performance.

    FEATURES
    32-Watt, 8" Loudspeaker System Delivers Efficient Frequency Response
    Loudspeaker Conveniently Front Loads into Acoustically-Matched Enclosure, Plaster or Trim Ring
    Patented System Design Provides Easy Installation
    Performance Sensitivity Offers Enhanced Audio Clarity
    Optional System Components (not included): Transformers, Acoustic Enclosures, Tile Bridge, Plaster Ring, Trim Ring and Hardware-Free Grilles
    SPECIFICATIONS
    Speaker Type Coaxial
    Sensitivity 89.5dB Average, 93dB Peak
    Frequency Response 75Hz - 20kHz
    Power Taps 8, 16, & 32 Watts
    Dispersion 110°
    Depth 5 1/2" (13.97 cm)
    Diameter 8 1/4" (20.955 cm)
    Shipping Weight 8.00 lbs (3.63 kgs)
    Safety Listed 1480
    SUPPORT FILES
    Installation Sheet
    FA Series Install RevD (1 page)
    Data Sheet

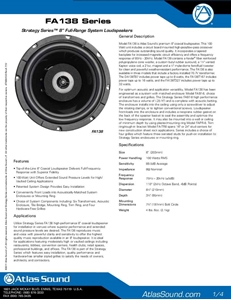

    ATS004120 FA138 Series Datasheet RevA (4 pages)
    CAD Drawing
    FA138T327
