8" Coaxial Loudspeaker with 16-Watt 70.7V Transformer

FA138T167
  • 70V100VCAPABLE
  • HYFIDROPHOBIC_OPTIONAL
  • AMATHOPHOBIC_OPTIONAL

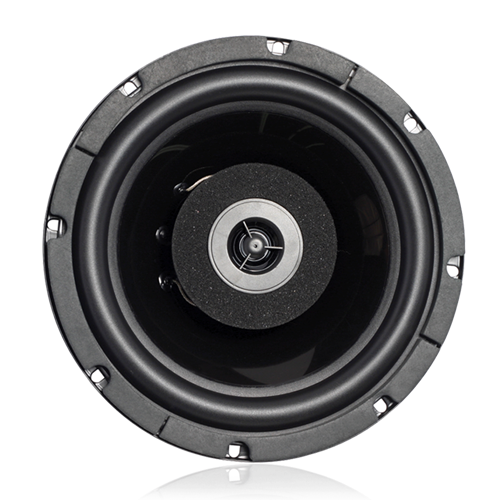

    Model FA138T167 is AtlasIED's premium 8" coaxial loudspeaker with a factory installed, high efficiency 16 Watt 70.7V transformer.

    The loudspeaker includes a circuit board mounted high-pass/low-pass crossover which produces outstanding sound quality. Model FA138 contains a reinforced polypropylene cone woofer, a custom butyl rubber surround, a 1 1/2" vented Kapton voice coil, a 21oz. magnet and a 1/2" mylar-dome ferrofluid cooled tweeter for clean and powerful weather-resistant performance.

    The integral 16 Watt 70.7V transformer features a 40Hz - 15kHz frequency responce (±1dB) with 4, 8 and 16 watt primary taps.

    For optimum acoustic and application versatility the Strategy series has been engineered as a system offering both the FA97-8 Series high performance enclosures (.22ft3) with acoustic batting as well as the economy FA95-6 Series (.17ft3) backbox enclosures. The enclosure front-loads the loudspeaker and installs quickly and easily into the ceiling using only a screwdriver to adjust the rotating clamps. Loudspeakers may also be ceiling or wall mounted into areas with minimum depth by using plaster ring Model FAPR-8 instead of an enclosure.

    Baffle selection includes a choice of two attractive grilles which are equipped with three serrated studs for hardware-free, push-on installation into Strategy Series enclosures.

    For limited depth installations when no enclosure is required mounting ring model FAPR-8 may be utilized. New construction ring model FA-TR8 is also available to serve as a pattern cut-out and location marker for drywall installers in new construction applications.

    Features
    100-Watt Unit Offers Extended Sound Pressure Levels for High/Vaulted Ceiling Applications
    Conveniently Front Loads into Acoustically-Matched System Enclosures or Mounting Ring
    Top-of-the-Line 8" Coaxial Loudspeaker Delivers Full-Frequency Response with Superior Fidelity
    Tech Specs
    Speaker Type Coaxial
    Sensitivity 89.5dB Average, 93dB Peak
    Power Taps 4, 8, & 16 Watts
    Frequency Response 75Hz - 20kHz
    Dispersion 110°
    Depth 5 3/4" (14.605 cm)
    Diameter 8 1/4" (20.955 cm)
    Shipping Weight 7.42 lbs (3.37 kgs)
    Safety Listed 1480
    Support Files
    Installation Sheet FA Series Install RevD (1 page) View | Download
    Data Sheet ATS004120 FA138 Series Datasheet RevA (4 pages) View | Download
    CAD Drawing FA138T167 Download
