6" Coaxial In-Ceiling Speaker with 8-Watt 70V Transformer

FA136T87
Availability: Call for Availability
Your Price:
$100.99
  • CUL
  • HYFIDROPHOBIC_OPTIONAL
  • 70V100VCAPABLE
    DESCRIPTION

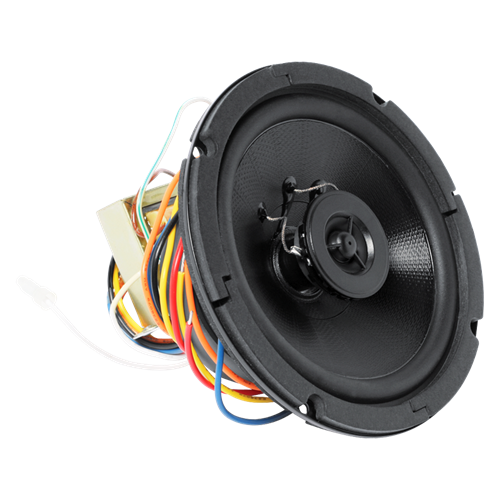

    Model FA136T87 (U.S. Patent #5206464) is a high-fidelity, coaxial, 6" speaker that delivers 50-watts with full frequency response and wide dispersion.


    UL listed assemblies are manufactured with high quality materials including reinforced, polypropylene woofer and synthetic rubber surround for high-definition bass, structural integrity, effective damping and weather-resistance.

    Each unit includes a post-mounted dome tweeter with a mylar diaphragm and ferrofluid-cooled voice coil for smooth response and excellent power handling capability.

    For optimum acoustic and application versatility the Strategy series has been engineered as a system offering both the FA97-6 Series high performance enclosures (.17ft3) with acoustic batting as well as the economy FA95-6 Series (.14ft3) backbox enclosures.The enclosure front-loads the speaker and installs quickly and easily into the ceiling using only a screwdriver to adjust the rotating clamps. Speakers may also be ceiling or wall mounted into areas with minimum depth by using plaster ring Model FAPR-6 instead of an enclosure.

    Baffle selection includes a choice of two attractive grilles which are equipped with three serrated studs for hardware-free, push-on installation into Strategy Series enclosures. For limited depth installations when no enclosure is required mounting ring model FAPR-6 may be utilized. New constuction ring model FA-TR6 is also available to serve as a pattern cut-out and location marker for drywall installers in new construction applications.


    Features
    • Achieves Fidelity Similar to an 8" (203mm) System with Wider Dispersion
    • Front Loads into Specially Designed, Acoustically Matched Enclosure
    • Patented, Easy-to-Install Loudspeaker Mounting System
    • Uses Advanced Materials to Deliver 50-Watts with Full Bass and Crisp Highs
    • UL Certified, Safety Listed to UL1480

    SPECIFICATIONS
    Speaker Type Coaxial
    Sensitivity 88dB Average, 91dB Peak
    Frequency Response 80Hz - 20kHz
    Power Taps 1, 2, 4, 8 Watts
    Dispersion 130°
    Depth 5 1/4" (13.335 cm)
    Diameter 6 9/16" (16.67002 cm)
    Shipping Weight 3.83 lbs (1.74 kgs)
    Safety Listed 1480
    Warranty Period 60 months from date of purchase

    SUPPORT FILES
    FA Series Install Sheet (1 page) FA Series Install Sheet (1 page)

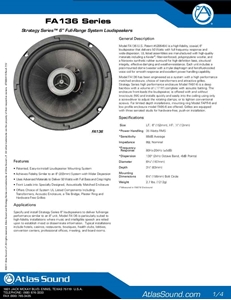

    FA136 Series Datasheet (4 pages) FA136 Series Datasheet (4 pages)
