4" Coaxial In-Ceiling Speaker with Low Profile 8-Watt 70V Transformer and DIN Terminal Connectors

FA134T87-LP-DIN
Availability: In stock
Your price (USD): $75.99
  • UL Listed
  • CUL
  • HYFIDROPHOBIC_OPTIONAL
  • AMATHOPHOBIC_OPTIONAL
  • 70V100VCAPABLE
    DESCRIPTION

    The Strategy Series FA134T87-LP-DIN combines superior coaxial loudspeaker performance with wide dispersion and easy installation. When integrated with Strategy Series hardware the patented loudspeaker system (U.S. Patent #5206464) satisfies the needs of owners, architects, contractors, and consultants by delivering true, high-fidelity sound reproduction in an attractive and easy-to-install system. FA134T87-LP-DIN loudspeakers are ideal for high intelligibility voice, music and signal reproduction in commercial, industrial and institutional applications.

    The FA134T87 is the industry’s first UL Listed coaxial 4" (127mm) loudspeaker. It handles 25 Watts with excellent low-frequency reproduction and smooth extended response. The unit’s 130° dispersion angle effectively reduces the number of loudspeakers necessary to achieve total coverage in distributed systems with low ceilings.  The FA134T87-LP-DIN incorporates a low profile transformer bracket, as well as DIN rail screw terminal connectors.

    Model FA134T87-LP-DIN has been engineered as a system with a choice of two high performance matched enclosures grille options. Strategy Series high performance enclosure Model FA97-4 is a deep backbox with a volume of 0.10 ft3 complete with acoustic batting. Strategy Series enclosure model FA95-4 is a shorter backbox with a volume of 0.8 ft3. The FA97-4 is offered with and without knockouts (NK) and installs quickly and easily into the ceiling using only a screwdriver to adjust the rotating clamps, or to tighten conventional screws.

    Loudspeakers front-load into the enclosure and include a sealing gasket on the back return of the speaker basket which seals the assembly. Loudspeakers may also be wall or ceiling mounted into areas with minimum depth by using plaster ring Model FAPR-4 instead of the enclosure.

    Baffle selection includes a choice of four attractive grilles which are equipped with three serrated studs for hardware-free, push-on installation to Strategy Series enclosures.


    FEATURES
    • 25-Watt, UL Listed, 4" Coaxial Loudspeaker
    • Front Loads into Acoustically-Matched System Enclosure, Plaster or Trim Ring
    • Patented System Design Provides Easy Installation
    • Wide-Angle Dispersion for Excellent Sound Coverage in Rooms with Low Ceilings
    • UL Certified, Safety Listed to UL1480
    • Custom transformer bracket enables shallow mount depth

    • Features DIN rail mounted screw terminal connects for speaker wire termination

    SPECIFICATIONS
    Speaker Type Coaxial
    Sensitivity 88dB Average, 92dB Peak
    Power Taps 1, 2, 4, & 8 Watts
    Frequency Response 110Hz - 20kHz
    Dispersion 130°
    Depth 4.35" (110 mm)
    Diameter 5.04" (12.8 cm)
    Shipping Weight 1.71 lbs (0.77 kgs)
    Certified to Safety Listing UL 1480

    SUPPORT FILES
    Installation Sheet
    ATS000743 FA Series Install RevD
    Data Sheet

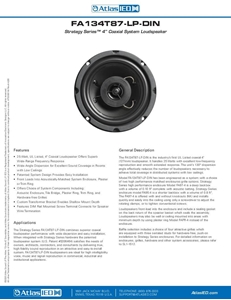

    FA134T87-LP-DIN Data Sheet
