4" Coaxial In-Ceiling Loudspeaker with 8-Watt 70V Transformer

FA134T87
  • UL Listed
  • HYFIDROPHOBIC_OPTIONAL
  • AMATHOPHOBIC_OPTIONAL
  • CUL
  • 70V100VCAPABLE

    The FA134T87 is a UL listed coaxial 4" (127mm) loudspeaker that handles 25-watts with smooth extended frequency response.

    The unit's 130° dispersion angle effectively reduces the number of loudspeakers necessary to achieve total coverage in distributed systems with low ceilings.

    Model FA134T87 has been engineered as a system with 8-watt high performance 70.7V transformer, optional high performance matched enclosure and choice of attractive grilles (sold seperately).

    Loudspeakers front-load into the enclosure or may be ceiling or wall mounted into areas with minimum depth by using plaster ring Model FAPR-4 instead of an enclosure.

    FEATURES
    25-Watt, UL Listed, 4" Coaxial Loudspeaker
    Front Loads into Acoustically-Matched System Enclosure, Plaster or Trim Ring
    Patented System Design Provides Easy Installation
    Wide-Angle Dispersion for Excellent Sound Coverage in Rooms with Low Ceilings
    UL Certified, Safety Listed to UL1480
    SPECIFICATIONS
    Speaker Type Coaxial
    Sensitivity 88dB Average, 92dB Peak
    Power Taps 1, 2, 4, & 8 Watts
    Frequency Response 110Hz - 20kHz
    Dispersion 130°
    Depth 4.79" (12.17 cm)
    Diameter 5.04" (12.8 cm)
    Shipping Weight 1.71 lbs (0.77 kgs)
    Certified to Safety Listing UL 1480
    SUPPORT FILES
    Installation Sheet
    IN371041 (1 page)

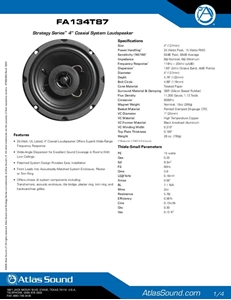

    Data Sheet
    FA134T87 Data Sheet (4 pages)
    Installation Sheet
    FA Series Install RevD (1 page)
    CAD Drawing
    FA134T87_CAD
