New Construction Ring 8" Strategy Series

FA-TR8
Availability: In stock
Your price (USD): $33.99
  • Made in USA
  • BAA
  • TAA
    DESCRIPTION

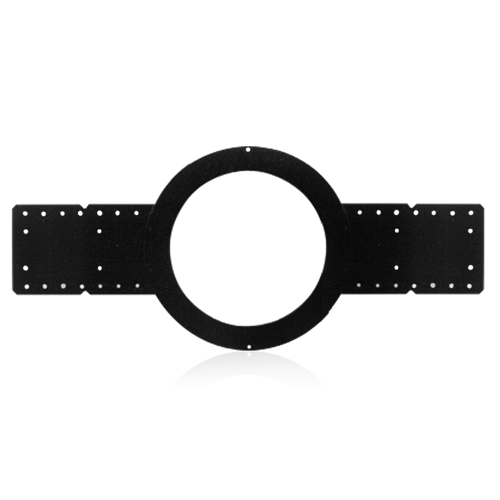

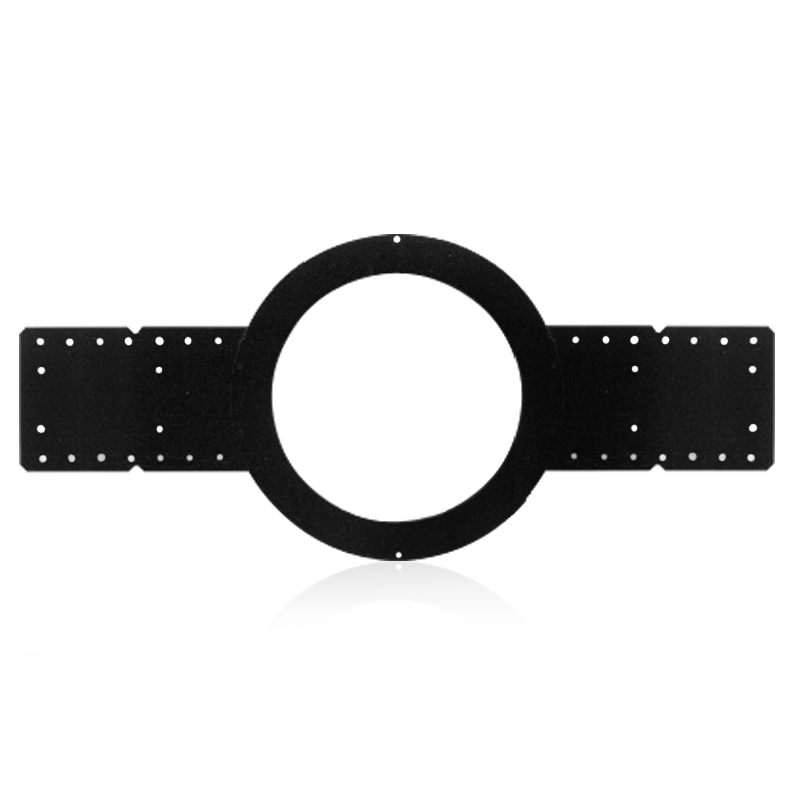

    The Strategy Series FA-TR8 trim ring/rough-in bracket, for wall or ceiling-mount applications, installs prior to the drywall and serves as a pattern cut-out for the drywall contractor to finishout the wall leaving the proper opening for a FA97-8 or FA95-8 enclosure or FAPR-8 plaster ring.

    This step identifies pre-wire location and expedites sound system installation.

    Trim ring measures 25 5/8" L and will accommodate 3/8" to 1 1/4" drywall. Mounting holes are provided to match both 16" and 24" center studs.

    FA-TR8 is constructed of #18 gauge galvanized steel.

    NOTE: Trim ring alone will not allow installation of Strategy Series Grilles. Enclosure or FAPR Plaster Ring is required for grille installation.

    FEATURES
    • Accommodates from 3/8" to 1 1/4" Drywall Thickness
    • Constructed of 20-Gauge Steel
    • Installs Prior to Drywall and Serves as a Pattern Cutout for the Drywall Installer
    • Mounts on Either 16" Centered or 24" Centered Joists or Studs

    SPECIFICATIONS
    Height 25 5/8" (65.0875 cm)
    Diameter 9 3/4" (24.765 cm)
    Shipping Weight 1.40 lbs (0.64 kgs)

    SUPPORT FILES
    Data Sheet
    ATS001387 8%22 Mounting System Accessories Datasheet RevE
    CAD Drawing
    FA-TR8
