New Construction Ring 6" Strategy Series

FA-TR6

Availability: In stock
Your Price:
$41.99
  • BAA
  • TAA
    DESCRIPTION

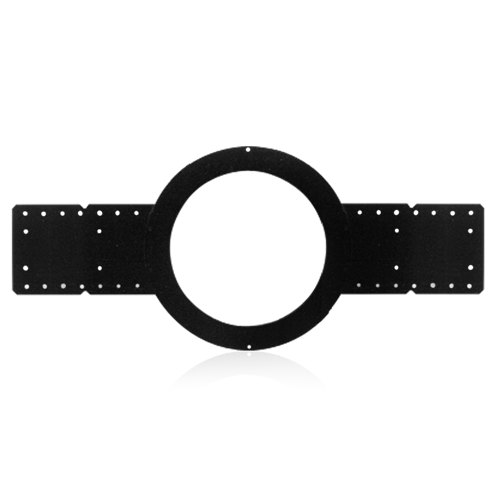

    The Strategy Series FA-TR6 trim ring/rough-in bracket, for wall or ceiling-mount applications, installs prior to the drywall and serves as a pattern cut-out for the drywall contractor to finishout the wall leaving the proper opening for a FA97-6 or FA95-6 enclosure or FAPR-6 plaster ring. This step identifies pre-wire location, expediting sound system installation.

    Trim ring measures 25 5/8" L and will accommodate 3/8" to 1 1/4" drywall. Mounting holes are provided to match both 16" and 24" center studs. FA-TR6 is construced of 20-gauge galvanized steel.

    NOTE: Trim ring alone will not allow installation of Strategy Series Grilles. Enclosures or FAPR Plaster Ring are required for grille installation.

    Features
    • Accommodates from 3/8" to 1-1/4" Drywall Thickness
    • Constructed of 20-Gauge Steel
    • Installs Prior to Drywall and Serves as a Pattern Cutout for the Drywall Installer
    • Mounts on Either 16" Centered or 24" Centered Joists or Studs

    SPECIFICATIONS
    Height 25 5/8" (65.0875 cm)
    Diameter 8 3/8" (21.2725 cm)
    Shipping Weight 1.63 lbs (0.74 kgs)
    Safety Listed 1480
    Warranty Period 60 months from date of purchase

    SUPPORT FILES
    FA-TR6 CAD Drawing FA-TR6 CAD Drawing
