Full Range Powered Line Array Speaker System

EM806A-B
  • BAA
  • TAA
  • Non-Powered
  • Powered
    DESCRIPTION

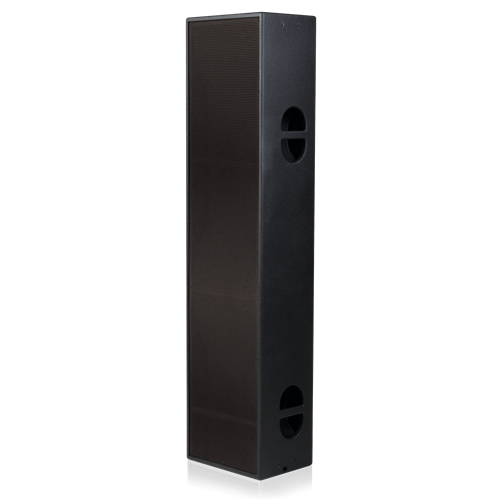

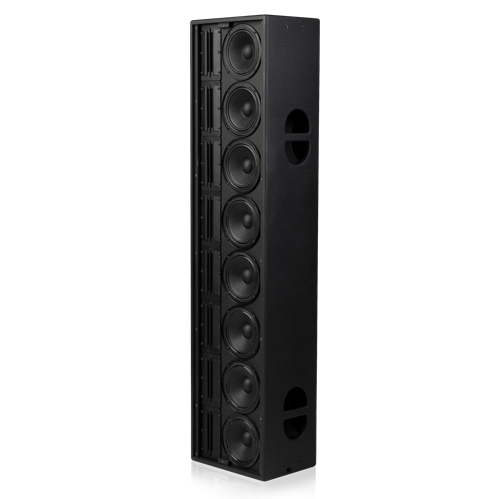

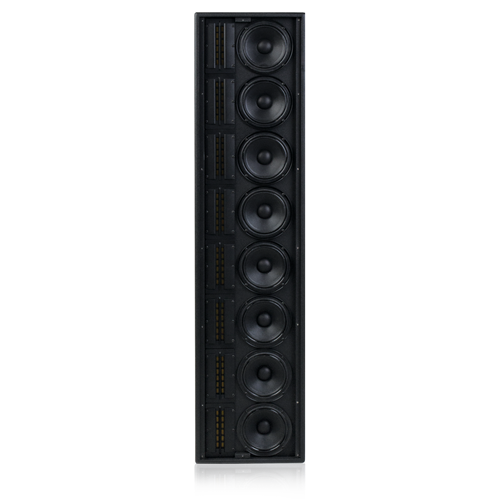

    The Atlas A-Line EM806A-B line array system is a 1500W RMS powered full range speaker system that is designed for use in speech and music reproduction applications for medium to large venues like houses of worship, theaters, or halls. The unit incorporates eight 6.5" high frequency ribbon drivers and eight 6.5" midrange drivers. The unit features an integrated class D amplifier with pre-configured DSP for optimal sound reproduction.

    This amplifier is able to deliver 1000W RMS power to the midrange speakers and 500W RMS power to the high frequency drivers. The sealed cabinet design has integrated carry handles for easy transport and is finished in heavy duty black DuracoatTM. The EM806A-B is designed to be used with the EMW410A-B subwoofer system for a truly unmatched 3-way sound experience.


    FEATURES
    • Eight 6.5" High Frequency Ribbon Drivers
    • Eight 6.5" Midrange Drivers
    • Integrated 1500W Class D Amplifier
    • Integrated Carrying Handles for Easy Transport
    • Heavy Duty Duracoat™ Finish

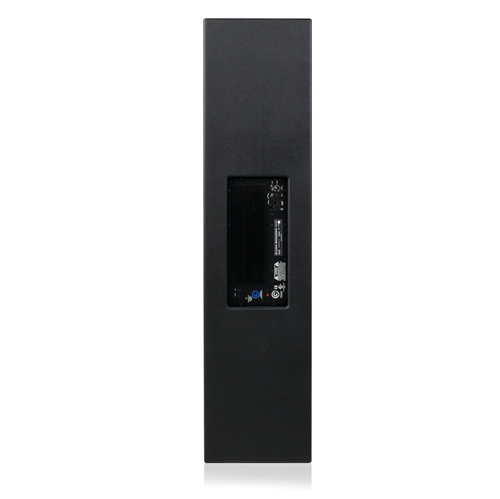

    • M&F XLR & I/O PowerCON™ Connectors

    SPECIFICATIONS
    Total RMS Power 1500 Watts
    Midrange RMS Power 1000 Watts
    High Frequency RMS Power 500 Watts
    Frequency Response 90Hz - 19kHz
    MAX SPL 130 dB
    Height 54.6" (138.68 cm)
    Width 13.1" (33.27 cm)
    Depth 9.4" (23.88 cm)
    Weight 105 lbs (47.63 kg)

    SUPPORT FILES

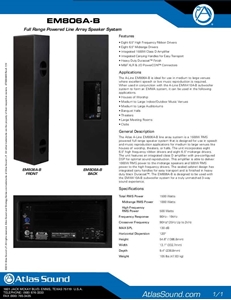

    EM806A-B Datasheet (1 page) 148 KB
    EMMA System Owners Manual (12 pages) 436 KB
    ALA004558 EMMA2K-B Owner's Manual (12 pages) 624 KB
    EM806A-B 183 KB
    EMMA_806A EASE DATA 445 KB
